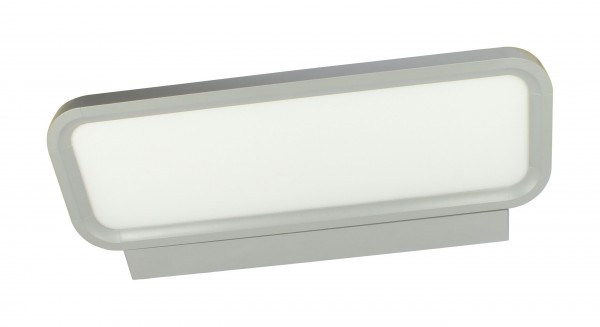

Synergy 21 LED office line wall panel gray, dimmable
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 149501
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-NB00278
- EAN No.: 4038816071729
- weight: 3kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
Lichtberechnungsdatei
EU RoHS und REACH Erklärung
LED panel office line
Suitable for wall mounting (workplace lighting)
Frame colour:... more
Product information "Synergy 21 LED office line wall panel gray, dimmable"
LED panel office line
Suitable for wall mounting (workplace lighting)
Frame colour: grey/silver RAL9006
Power consumption: 40Watt, 20W up, 20W down
Lumen output: 3500lm
Neutral white: 4100k ±150
Colour rendering: CRI >80
UGR: <19 with light downwards, no UGR upwards
Beam angle: 120° (total)
Operating temperature: -20° to +45°
Power supply: 100-240V
Power supply: built-in power supply 0-10V dimmable
Size: 600mm x 215mm x 30mm
Aluminium housing incl. ceiling mounting kit
Energy efficiency class: A++
kWh/1000h: 45
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| CRI: | 80 |
| Dimmbar: | ja |
| Grösse: | 600*215 |
| LED - Gehäusefarbe: | grau |
| LED - Gehäuseform: | rechteckig |
| Lichtfarbe: | neutralweiss |
| Lichtfarbe in Kelvin: | 4100 |
| Lumen: | 3500 |
| Schutzklasse: | IP40 |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 44,00 |
| Lumen: | 3500 |
| Watt: | 40,0 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
