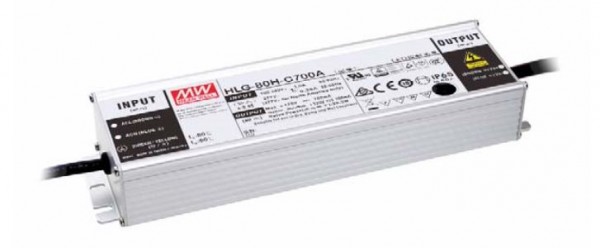

Mean Well power supply - CC Driver 700mA ~129V 0-10V dimm
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 167271
- vendor: Meanwell
- mnufacturer no.: HLG-80H-C700B
- weight: 0.84kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
HLG-80H-C700B
Attention: Constant current with 700mA
dimmable (1-10 Volt, PWM dimmer) , IP65... more
Product information "Mean Well power supply - CC Driver 700mA ~129V 0-10V dimm"
HLG-80H-C700B
Attention: Constant current with 700mA
dimmable (1-10 Volt, PWM dimmer) , IP65
Input: 90~305VAC, 127~431VDC
Output: 700mA, 84~129V , 90,3 Watt
Operating temperature: -40°C to +80°C
LxWxH 195.6x61.5x38.8mm
Protection markings: See meanwell.com
Open cable ends
please refer to data sheet.
Example calculation for 700mA LED panels (700mA, ~42V and 30W)
| Number of panels | mA | Volt | Watt |
|---|---|---|---|
| 1 | 700 | 42 | 30 |
| 2 | 700 | 84 | 60 |
| 3 | 700 | 126 | 90 |
| 4 | 700 | 168 | 120 |
| 5 | 700 | 210 | 150 |
Produktmerkmale:
| Ampere: | 0.70 |
| Betriebstemperatur: | -40 bis +80 |
| CC oder CV: | CC |
| Dimmbar: | ja |
| Grösse: | 195,6*61,5*38,8 |
| Volt: | 84-129 |
| Watt: | 90,3 |
