Synergy 21 LED Flex Strip NEON 360° blue DC24V
- stock: 0
- part no.: 174544
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-F00206
- EAN No.: 4038816090843
- weight: 1kg
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
data sheet ES
EU RoHS und REACH Erklärung

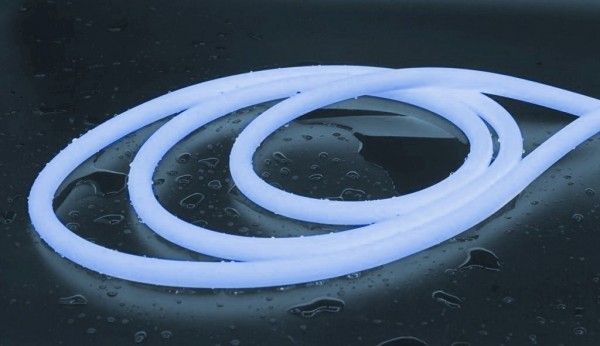

Synergy 21 LED Flex Strip NEON 360° series
The Neon 360° Strip series illuminates homogeneously 360° without dark spots
The strip can be bent freely, with outstanding flexibility and wide application.
The strip is IP65, made of environmentally friendly silicone material, salt and alkali-resistant, UV-resistant, flame-retardant.
Length: 5m
Voltage: 24V
Watt: 11W/m, 55W
Light colour: blue, 115nm
Brightness: ambient lighting
Beam angle: 360°
Protection class: IP65
Number of LEDs: 360/m,
Dimensions: 5000*15 mm (L*diameter)
Operating temperature: -20°C to +50°C
Dimmable: yes
Can be shortened: no
Adhesive tape: no
Energy efficiency class: A
kWh/1000h: 60.5
Make sure that the LED strip does not exceed the operating temperature of 50°C, otherwise the service life cannot be guaranteed.
No guarantee can be given for overheated LED Strips.
Produktmerkmale:
| Abstrahlwinkel: | 360 |
| Ampere: | 2.30 |
| CC oder CV: | CV |
| Dimmbar: | abhängig vom Netzteil |
| Grösse: | 5000*15 |
| LED Strip Klebeband: | nein |
| LED Strip Breite: | ø15 |
| LED Strip Klebeband: | nein |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | nein |
| Lichtfabe in nm: | 115 |
| Lichtfarbe: | blau |
| Lichtfarbe 3: | 115 |
| Lichtfarbe Name: | blau |
| Lichtfarbe in nm: | 115 |
| Schutzklasse: | IP65 |
| Volt: | 24 |
| Watt: | 55 |
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 60.50 |
| Lumen: | 1500.00 |
| Watt: | 55.00 |
| Nennlebensdauer: | 35000.00 Std. |
| Schaltzyklen: | 50000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
