ALLNET ALL1682511v2 / 500Mbps Powerline + 300Mbps AP 2,4/5Gh

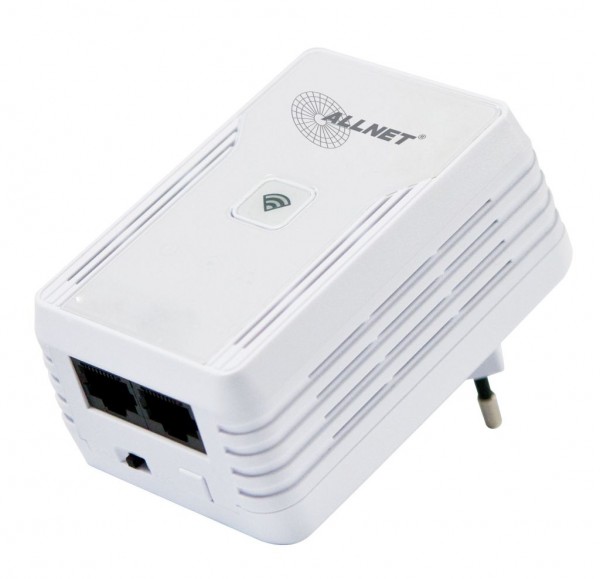

Preview: ALLNET ALL1682511v2 / 500Mbps Powerline + 300Mbps AP 2,4/5Gh

product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Due to the holiday "2. Weihnachtstag" your order will not be dispatched until the next working day.

Downloads

declaration of conformity

data sheet DE

data sheet EN

EU RoHS und REACH Erklärung

Last Stock Article
stock: 0
part no.: 123065
vendor: ALLNET
mnufacturer no.: ALL1682511v2
EAN No.: 4038816048660
weight: 1kg
warranty: 24 months
Do you have any questions concerning this product?

2in1: 500 Mbit Powerline Bridge with WiFi N Accesspoint, 2x LAN Ports Highlights:... more

Close menu

Product information "ALLNET ALL1682511v2 / 500Mbps Powerline + 300Mbps AP 2,4/5Gh"

2in1: 500 Mbit Powerline Bridge with WiFi N Accesspoint, 2x LAN Ports

Highlights:

500 Mbps Homeplug AV
300 Mbps Wireless N Access Point
2,4Ghz or 5 Ghz selectable
WPS Button
2nd LAN/Network-Port

ALL1682511v2 is a 500Mbps HomePlug Adapter + 300Mbps Wireless N Extender 2x2 dual-band (2.4/5 GHz). ALL1682511v2 embarks on a concept of No New Wires data communications, and it transforms your in-house powerline into a networking infrastructure and a WLAN connection. It successfully reduce “blind spot”, increase throughput and increase network coverage within a home. Surf the Internet and share data at the speed up to 500Mbps Phy rates through powerline, 300Mbps via Wireless, in any outdoor environment - and rest assured with the best security from eavesdroppers through encryption on the power circuit and WLAN.

ALL1682511v2 HomePlug engine is a Qualcomm Atheros AR7420 chipset. It features faster processing power, Fast Ethernet host interfaces and an enhanced analog front end. The solution is compliance with IEEE1901 and Homeplug AV, hence allowing hassle free compatibility with existing Homeplug AV devices and other suppliers of IEEE1901 PLC (Powerline Line Communication) devices. As for the Wireless, it is using Qualcomm Atheros AR9344 2x2 2.4/5 GHz Wireless N SoC chipset. Enhanced Quality of Service (QOS) also provides the guaranteed bandwidth reservations for multimedia payloads including TV over IP (IPTV), higher data rate broadband sharing, Online-Gaming, VoIP Calls, extending Wireless LANs coverage, Audio-Video transmission across the network as well as Network camera connectivity. ALL1682511v2 provides a simple connect push button for a convenient way of creating HomePlug network without the need to using the Device Utility from a computer. The security feature is supported by 128-bit AES Hardware encryption. As for WLAN security feature,
it is supported by WPA, WPA2, and WAP. Ensuring the network communications is free from eavesdroppers and hackers.

Technical Details:

Elements	Specifications
PLC Chipset:	Atheros AR7420+1540
WiFi Chipset	Atheros AR9344
Standards:	Powerline -> HomePlug AV Wireless -> IEEE 802.11b/g/n Ethernet -> IEEE 802.3, Auto MDI/MDIX IEEE 1901/HomePlug AV Compliant Co- existence with HomePlug 1.0 Nodes Compliant to EuP requirements
Brutto Datenrate Powerline:	max. 500Mbps
Brutto Datenrate Wireless:	max. 300Mbps, 2Tx2R
Frequency PLC Band:	2~28 MHz
Frequency WiFi:	2,4 GHz / 5Ghz selectable
Access-Methode Powerline:	TDMA and priority-based CSMA/CA
Access-Methode Wireless:	CSMA/CA,EDCA
Quality of Service:	4 Levels Priority-based CSMA/CA channel access schemes maximize efficiency and throughput Integrated Quality of Service (QoS) Enhancements Hardware Packet Classifiers for ToS, CoS and IP Port Number Supports IGMP managed multicast session
PLC Modulation:	OFDM 1024/256/64/16/8 QAM, QPSK, BPSK, ROBO
WiFi Modulation:	CCK,BPSK,DQPSK, QPSK, QAM
PLC Adapter Power Connector/Plug:	100V~240V EURO
Network Ports:	2x RJ45 10/100Mbit
PLC Security:	128-bit AES Link Encryption with key management
WiFi Security:	WEP 64/128/152bit WPA, WPA-PSK WPA2, WPA2-PSK
LED Indicators:	Power LED (PWR) PowerLine Link/ACT Status LED (PL-LKACT) Ethernet Link/ACT Status LED (ETH-LKACT) WPS on/Off Status LED
Power:	100~240 VAC, 50/60 Hz
Power Consumption:	Working mode 3,6W Watt, Standby max. 0,5 Watt
OS Environmental:	all TCP/IP compatible OS
OS Environmental for Configuration:	Windows® XP32bit, Windows® Vista32/64bit, Windows®7 32/64bit
Housing:	Plastic
Environmental Temperature:	Temperature: 0 ~ 40 °C Humidity: 10% ~ 90% (non condensing) Storage Temperature: -25 ~ 70 °C Storage Humidity: 30% ~ 950% (non condensing)
Marks:	CE
Dimension:	62 mm x 92mm x 42 mm
Weight:	140 Gramm (device only)
Package content:	1 pcs ALLNET ALL1682511v2 1 pcs RJ45 Patchkabel 1,8m 1 pcs CD-ROM with Manual and Software
