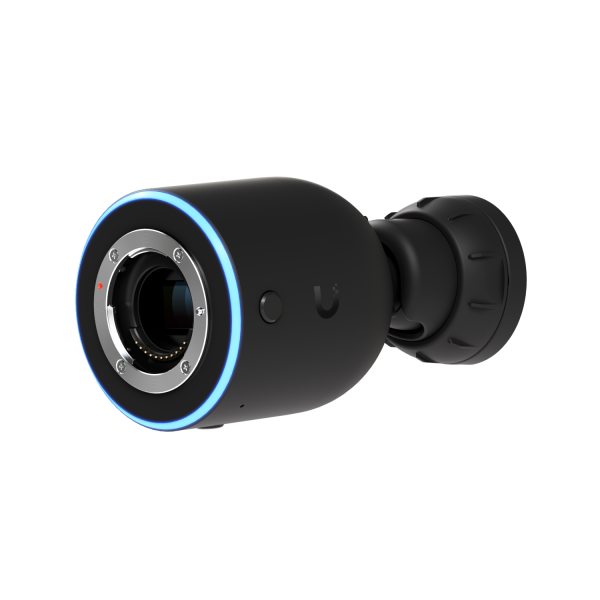

Ubiquiti UniFi Video Camera AI-DSLR Long Distance / Outdoor / 4K / PoE+ / UVC-AI-DSLR-LD

4K-PoE-Kamera für den Innen- und Außenbereich mit 17- oder 45-mm-Objektiv.

4K (8MP) Videoauflösung

Hochempfindlicher Bildsensor

Inklusive M4/3 f/1.2 Objektiv mit großer Blendenöffnung

Fortschrittliche KI: Personen erkennen, Nummernschilder lesen und mehr

Integriertes 2-Wege-Audio*

Anschluss und Stromversorgung über PoE+

Wetterfest (für den Außeneinsatz)

Technical Specifications
Mechanical
Dimensions Without mount: Ø80 x 89 mm (Ø3.1 x 3.5")
With mount: Ø80 x 153 mm (Ø3.1 x 6")
M. Zuiko Digital ED 17 mm f/1.2 PRO (UVC-AI-DSLR): Ø68.2 x 87 mm (Ø2.7 x 3.4")
M. Zuiko Digital ED 45 mm f/1.2 PRO (UVC-AI-DSLR-LD): Ø70 x 84.9 mm (Ø2.8 x 3.3")
Outdoor case: Ø91.6 x 196.3 mm (Ø3.6 x 7.7")
Weight Without mount: 660 g (1.5 lb)
With mount: 820 g (1.8 lb)
M. Zuiko Digital ED 17 mm f/1.2 PRO (UVC-AI-DSLR): 390 g (0.86 lb)
M. Zuiko Digital ED 45 mm f/1.2 PRO (UVC-AI-DSLR-LD): 410 g (0.9 lb)
Outdoor case: 510 g (1.1 lb)
Enclosure material Aluminum alloy
Mount materials Wall mount: aluminum alloy
Pole mount: aluminum alloy
Weatherproofing IPX5 (With the outdoor case)
Optics
Sensor 4/3" 10MP CMOS sensor
Lens M. Zuiko Digital ED 17 mm f/1.2 PRO (UVC-AI-DSLR)
M. Zuiko Digital ED 45 mm f/1.2 PRO (UVC-AI-DSLR-LD)
View angle Wide (UVC-AI-DSLR): 52° (H), 39° (V), 65° (D)
Telephoto (UVC-AI-DSLR-LD): 21.6° (H), 16.2° (V), 27° (D)
Video
Video compression H.264
Resolution 3840 x 2160 (16:9)
Max. frame rate 30 FPS
Image settings Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR/3DNR/NR by motion, masking, text overlay
System
Processor Quad-core Arm® Cortex®-A53 based chip
Networking interface (1) GbE RJ45 port
Max. power consumption 17.77W (with lens working)
Power method PoE+
Supported voltage range 37—57V DC
Buttons Factory reset
Lens release key
Mounting Wall, pole mount (included)
Tripot mount
Operating temperature -20 to 40° C (-4 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifications FCC, IC, CE
Audio
Microphone Yes (Can be disabled in software, while audio function will be turned off automatically with Outdoor-Case is attached.)
Speaker "Yes (Audio function will be turned off automatically with Outdoor-Case is attached.)"
Software
Web application UniFi Protect: Version 2.2.2 and later
Mobile app UniFi Protect iOS™ and Android™: Version 1.7.0 and later
