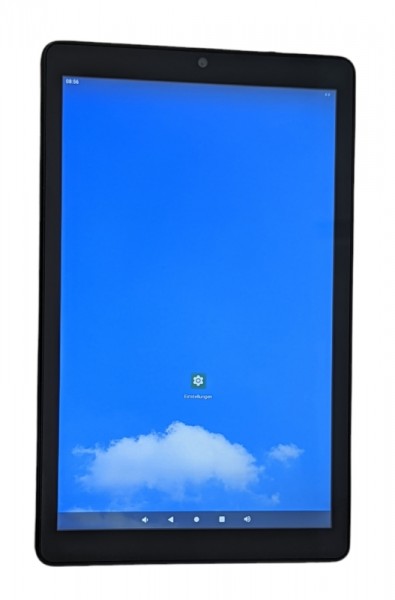

ALLNET Touch Display Tablet 8 inch PoE with 2GB/16GB, RK3566 Android 11, flush-mounted box
- stock: 0
- part no.: 210249
- vendor: ALLNET
- mnufacturer no.: UD8RK3566A11
- EAN No.: 4038816121691
- weight: 0.7kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
declaration of conformity
data sheet DE
data sheet EN
data sheet ES
data sheet FR
manual
EU RoHS und REACH Erklärung
Flush mount touch display with Rockchip RK3566 CPU and Android. 2GB Ram / 16GB memory. Expandable via USB and SD cards. Resolution 800x1280, PoE (Power over Ethernet).
The display is fixed with a frame in a flush-mounted box and placed flat on the wall.... It can be mounted on round and square flush-mounted boxes.
The display is specially designed for home automation, visualization and building control applications, as well as for mounting in control cabinets or for tabletop installation.
It is always recommended to test the devices for special applications on a long-term basis to ensure all required functions. Special feature: Power supply 12-24V DC or PoE 15.4 Watt. No power supply included.
The display is also suitable as a meeting room display or for home automation to show certain states due to the integrated LED bar on the sides.
Help for HTTP control via GET command can be found here:
|
Model NO. UD-8RK3568A11 |
||
|
Product Type |
8,0" POE LED Display |
|
|
Description |
||
|
System |
CPU/GPU |
Rockchip RK3566 quad core processor, CPU – Quad-core Arm Cortex-A55, GPU – Mali-G52EE GPU |
|
RAM |
2GB |
|
|
ROM |
16GB |
|
|
System |
Android 11 |
|
|
Display |
screen |
8,0 Zoll IPS Panel |
|
resolution |
1280x800 Wide viewing |
|
|
Contrast |
1000 |
|
|
Brightness |
300nits | |
|
Network |
WiFi |
802.11a/b/g/n 2,4/5GHz |
|
Ethernet |
POE 15,4 Watt IEEE802.3af |
|
|
Bluetooth |
YES |
|
|
3G |
no |
|
|
Jack |
SD |
Support TF card ( Max 64G ) |
|
Mini USB |
Mini USB |
|
|
USB Host |
USB Host |
|
|
RJ-45 |
built in |
|
|
Power |
DC input 12-24V |
|
|
Headset |
3.5mm stereo headphone/micro output |
|
|
Multimedia |
Video |
Video decode - H.264/H.265/VP9 |
|
Audio |
MP3/WMA/AAC etc. |
|
|
Picture |
jpeg, jpg |
|
|
other functions |
Wireless mouse |
Support |
|
Wireless keyboard |
Support |
|
|
Speak |
1x1W |
|
|
Camera |
2MP |
|
|
OSD Language |
Multi language OSD operation |
|
|
attachment |
Adapter |
no |
|
Wall Bracket |
yes |
|
| Vesa | no | |
Produktmerkmale:
| Abmessung: | 200x124.59x37,7mm |
| Arbeitsspeicher (RAM): | 2 |
| Auflösung Panel: | 1280x800 |
| Betriebssystem: | Android 11 |
| Bluetooth: | ja |
| Chipset: | RK3566 |
| Diagonale: | 8 |
| Einsatzbereiche: | Indoor |
| Farbe Displayrand: | schwarz |
| Farbe Gehäuse: | schwarz |
| Hauptspeicher: | 16 |
| IP Schutzklasse Display: | IP 20 |
| Kamera: | ja |
| Mobilfunk: | nein |
| Montageart: | Unterputzdose eckig, Unterputzdose rund |
| Produktart: | Tablet |
| SIP Einbindung: | nein |
| Stromversorgung: | PoE&Netzteil |
| Touchscreen: | Capacitiv |
| WLAN: | 2,4/5 |
