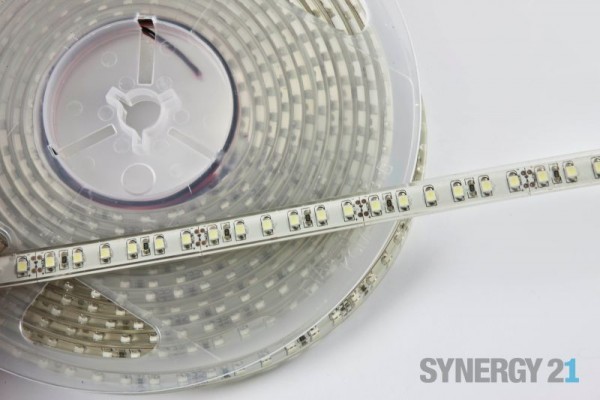

Synergy 21 LED Flex Strip cold white DC24V 48W IP68
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 82048
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-F00008
- EAN No.: 4038816995667
- weight: 0.346kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
data sheet ES
data sheet FR
EU RoHS und REACH Erklärung
LED Flex Strip cold white,
DC24V, max. 2A, 48W,
600Leds, 120°, 3528SMD
Length: 5000*10.8*4mm,... more
Product information "Synergy 21 LED Flex Strip cold white DC24V 48W IP68"
LED Flex Strip cold white,
DC24V, max. 2A, 48W,
600Leds, 120°, 3528SMD
Length: 5000*10.8*4mm, (strip width 10.8mm, end cap width 12mm)
Lumen: 975Lm/M, total: 4875
Kelvin: 600K
CRI: >95
Protection class: IP68, outdoor incl 3M tape
Suitable down to -25°C!
Strip can be cut at marking marks with sharp scissors.
!Attention! Strip must be checked for functionality beforehand.
Only split strip when no current is present.
Please note that LED strips must also be cooled.
Make sure that the LED strip does not exceed the operating temperature of 40°C, otherwise the service life cannot be guaranteed.
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 2 |
| CC oder CV: | CV |
| CRI: | >80 |
| Dimmbar: | Ja, abhängig vom Netzteil |
| LED Strip Klebeband: | ja |
| LED Strip Breite: | 10.80 |
| LED Strip Chip Anzahl: | 120 |
| LED Strip Chip Typ: | 2835 |
| LED Strip Höhe: | 4 |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | 50 |
| Lichtfabe in Kelvin: | 6500 |
| Lichtfarbe: | kaltweiss |
| Lichtfarbe Name: | kaltweiß |
| Lichtfarbe in Kelvin: | 6500 |
| Lumen: | 3900 |
| Schutzklasse: | IP68 |
| Volt: | 24 |
| Watt: | 48 |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 52.80 |
| Lumen: | 3900.00 |
| Watt: | 48.00 |
| Nennlebensdauer: | 35000.00 Std. |
| Schaltzyklen: | 50000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
