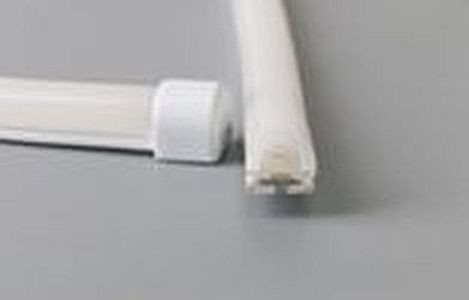

Synergy 21 LED Flex Strip NEON TB NW DC24V
- stock: 0
- part no.: 153188
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-B00257
- EAN No.: 4038816153180
- weight: 5kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
EU RoHS und REACH Erklärung
Synergy 21 LED Flex Strip NEON TB Series
TB= top bend, bend up and down, not sideways
If you want to bend sideways, please select the NEON SB series
Length: 5m
Voltage: 24V,
Watt: 14W/m, 70W ±10%
Light colour: neutral white, 4500K, CRI>80
Brightness: 800lm/m, total: 4000lm ±10%
Beam angle: 120°
Protection class: IP40
Number of LEDs: 120/m, SMD2835
Dimensions: 5000*17*15 mm (L*W*H)
Working temperature: -20°C to +45°C
Can be shortened every 50mm
Adhesive tape: no
Energy efficiency class: A
kWh/1000h: 77
Strip can be shortened at the cut marks with sharp scissors.
!Attention! Strip must be checked for functionality beforehand.
Only split the strip when no current is present.
There are a variety of mounting options, such as clips, permanently elastic mounting adhesive, cable ties, etc. See accessories
Please note that LED strips must also be cooled.
Make sure that the LED strip does not exceed the working temperature of 40°C, otherwise the service life cannot be guaranteed.
No guarantee can be given for overheated LED strips.
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 2.90 |
| CC oder CV: | CV |
| CRI: | >80 |
| Dimmbar: | abhängig vom Netzteil |
| LED Strip Klebeband: | nein |
| LED Strip Breite: | 17 |
| LED Strip Höhe: | 15 |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | 50 |
| Lichtfarbe: | neutralweiss |
| Lichtfarbe in Kelvin: | 4500 |
| Lumen: | 4000 |
| Schutzklasse: | IP65 |
| Volt: | 24 |
| Watt: | 70 |
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 77,00 |
| Lumen: | 4000 |
| Watt: | 70,0 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
