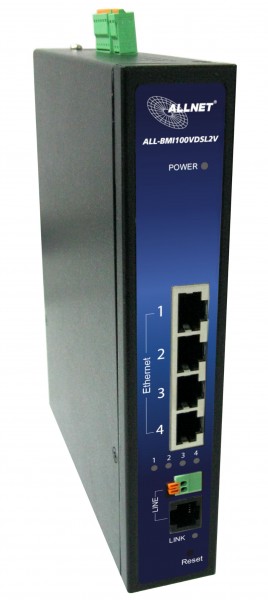

ALLNET ISP Bridge Modem VDSL2 with Vectoring Industrial IP30 VDSL2V ?ALL-BMI100VDSL2V?

Highlight:

• Industrial VDSL2V bridge modem made of metal with integrated 4-port 10/100/1000 Mbps switch.
• Hat rail mountable Supports DPBO (Downstream Power Back Off).
• Can be configured as a VDSL2 modem for Telekom VDSL2 connection and then requires a suitable downstream router.
• Supports VDSL vectoring.
• Wall mounting possible
• Redundant power supply is also possible.
• Can also be used as a point-to-point client in conjunction with ALL126AM3 master
• Temperature range -20 degrees to +70 degrees.
• The power supply is possible from 12V to 48V DC via terminal contacts.

ALL-BMI100VDSL2V is an industrial VDSL2 bridge modem equipped with four Gigabit LAN ports. It is compliant with the ITU-T G.993.2 and G.993.5 standards and supports the VDSL2 profile 30a & , which offers 100 Mbps of symmetrical data. ALL-BMI100VDSL2V is perfectly suited for triple play applications. Of course, it also supports the other profiles such as 17a / 8 etc. This can be configured via the integrated web interface. The modem is housed in a modern metal housing for DIN rail mounting and is suitable for harsh environments, such as industrial networks and applications in harsh environments (IP30).

Support of the vectoring technology Friendly Mode

Vectoring is a transmission method that uses the coordination of line signals to reduce crosstalk and improve performance. It is based on the concept of noise suppression, similar to headphones with noise suppression. The ITU-T G.993.5 standard, "Self-FEXT cancellation (Vectoring) for use with VDSL2 transceivers" (2010), also known as G.vector, describes vectoring for VDSL2. The scope of the ITU-T G.993.5 recommendation is specifically limited to self-FEXT suppression (far-end crosstalk) in the downstream and upstream directions. Far-end crosstalk (FEXT) generated by a group of short-range transceivers and interfering with the long-range transceivers of the same group is cancelled. This cancellation takes place between VDSL2 transceivers that do not necessarily have to have the same profile.

Easy installation

The ALL-BMI100VDSL2V can be installed on any flat surface (e.g. table, shelf or rail) with a bracket or on the DIN rail. The ALL-BMI100VDSL2V supports plug-and-play installation and is fully compatible with all types of network protocols. In addition, the user can monitor the status of each individual port via the LED indicators.

Advanced management

For efficient management, the ALL-BMI100VDSL2V can be programmed via the web interface for advanced management functions such as VLAN configuration through to changing synchronisation profiles, etc.

About applications in harsh environments

The ALL-BMI100VDSL2V can be used in harsh environments, such as -20°C ~ 70°C (-4°F ~ 158°F), and has a metal housing that complies with the IP-30 design.

The ALL-BMI100VDSL2V can be used in harsh environments, such as -20°C ~ 70°C (-4°F ~ 158°F), and has a metal housing that complies with the IP-30 design.
