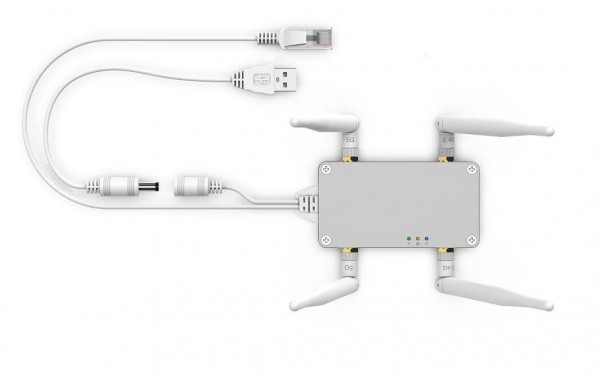

ALLNET Wireless Client 2,4GHz (300Mbps) und 5GHz (900Mbps) AC ALL-WCL1200v3 AC

HIGHLIGHTS

• Hardware Features:
  1.  Support wide voltage DC5-15V power supply, two-stage automatic overvoltage protection (Protection voltage upper limit 15.5V);
  2.  The output power of the power supply is not less than 10W (typical power supply 5V/2A, ripple less than 100mV);
  3.  Module power supply: 1.3W -- 3.75W;
  4.  WiFi Work Band: 2.4G + 5G;
  5.  WiFi transmission rate: 300Mbps(2.4G)+900Mbps(5G);
  6.  RF Power: 2.4G is 15dBm/16.5dBm optional, 5G is 19dBm/23dBm optional;
  7.  The transmission distance (5G without obstacle): 500 meters;
  8.  The module built-in LNA, the receiving sensitivity is 14dBi;
  9.   Standard package external antenna: 2*3dBi 2.4G antennas, 2*3dBi 5G antennas;
  10. Adopt temperature compensated auto frequency control technology, WiFi signal is more stable and not easy to drop;
  11. The aluminum alloy shell has good heat dissipation characteristics, which can quickly dissipate the heat generated when the device is working;
  12. Work Environment temperature: -20°C to +55°C.

  Function Features:
  1.  Support router and bridge repeater mode;
  2.  In router mode, support WiFi WAN access;
  3.  In router mode, support WAN/LAN exchange of wired network ports;
  4.  Support WiFi smart bridge repeater, can achieve WiFi to wired, wired  to WiFi function;
  5.  Support 802.11ac, 802.11a, 802.11n and so on transmission protocol;
  6.  Support WiFi hotspot automatic reconnection, two hotspot matching methods: Full match authentication mode, SSID and password authentication mode;
  7.  WiFi hotspot memory, maximum memory 100 hotspots;
  8.  Support connecting more than 20pcs WiFi terminal at the same time;
  9. Support SSA protocol, built-in hotspot signal strength detection and reporting function to realize WiFi mobile positioning;
  10. Support hotspot forced disable, WiFi hardware forced disable;
  11. Hotspot connection parameter import and export function;
  12. Adopt VDNS virtual domain configuration technology to solve the user’s trouble of configuration;
  13. Support WEB management, Chinese and English configuration interface;
  14. Support upgrade online;
  15. Support IP layer transparent transmission and MAC layer transparent transmission two bridge modes to meet various bridge applications:
  IP layer transparent transmission (factory default), transparent transmission of IP layer data, can meet most of the bridge applications;
  MAC layer transparent transmission all data above the MAC layer (link layer) and the MAC layer, including IP layer data; MAC transparent transmission can solve some special applications for MAC layer encryption, such as AP managed by AC, GoPro camera, Cisco AP, Hikvision monitoring, system, etc.

Technical Details:
