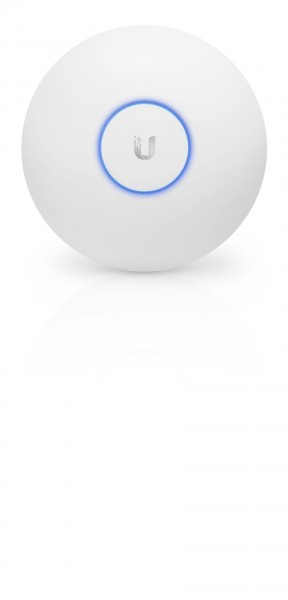

Ubiquiti Unifi Access Point Long Range / Indoor / 2,4 & 5 GH
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 124845
- vendor: Ubiquiti
- mnufacturer no.: UAP-AC-LR-5
- EAN No.: 810354025457
- weight: 2.91kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
Ceiling-mounted WiFi 5 AP with 5 spatial streams and extended signal range.
WiFi 5... more
Product information "Ubiquiti Unifi Access Point Long Range / Indoor / 2,4 & 5 GH"
Ceiling-mounted WiFi 5 AP with 5 spatial streams and extended signal range.
WiFi 5 dual-radio
5 spatial streams
185 m² (2,000 ft²) coverage
250+ connected devices
Powered using PoE*
GbE uplink
*PoE power adapter included with single unit purchases.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | Ø175.7 x 43.2 mm (Ø6.9 x 1.7") |
| Weight | Without mount: 240 g (8.5 oz) With mount: 315 g (11.1 oz) |
| Hardware | |
| Networking interface | (1) GbE port |
| Management interface | Ethernet |
| Power method | PoE 24V passive PoE (Pairs 4, 5+; 7, 8 return) |
| Power supply | UniFi PoE switch 24V, 0.5A Gigabit PoE adapter* *5-packs do not come with PoE adapters. |
| Max. power consumption | 6.5W |
| Max.TX power 2 GHz 5 GHz |
24 dBm 22 dBm |
| MIMO 2.4 GHz 5 GHz |
3 x 3 2 x 2 |
| Throughput rate 2.4 GHz 5 GHz |
450 Mbps 867 Mbps |
| Antenna gain 2.4 GHz 5 GHz |
3 dBi 3 dBi |
| Button | Factory reset |
| Mounting | Wall/ceiling (Included) |
| Operating temperature | -10 to 70° C (14 to 158° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11 a/b/g/n/r/k/v/ac |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | Up to 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Power save | Supported |
| WMM | Voice, video, best effort, and background |
| Concurrent clients | 250+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
