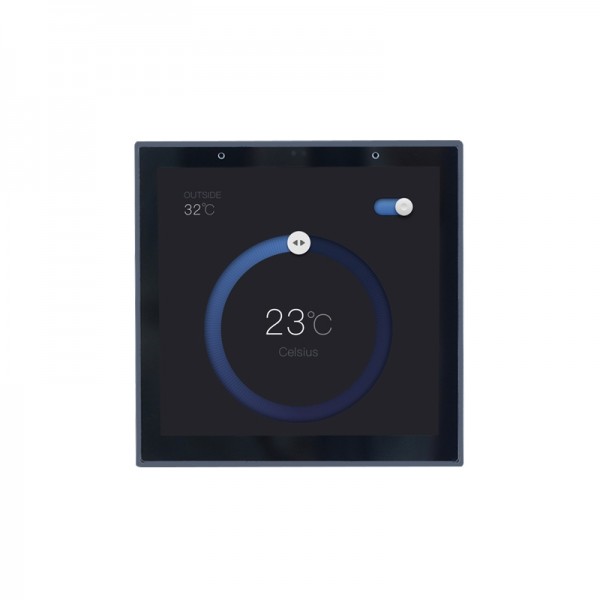

ALLNET Touch Display Tablet 4 Zoll mit 2GB/8GB, PX30, Android 8.1(PoE Version)
product pictures similar, may differ from the product description!
Due to the holiday "2. Weihnachtstag" your order will not be dispatched until the next working day.
- stock: 0
- part no.: 210839
- vendor: ALLNET
- mnufacturer no.: UD4PX30A81
- EAN No.: 4038816124852
- weight: 0.318kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet EN
data sheet ES
data sheet FR
EU RoHS und REACH Erklärung
Small 4-inch PoE display for integration into home automation, as a control panel for light,... more
Product information "ALLNET Touch Display Tablet 4 Zoll mit 2GB/8GB, PX30, Android 8.1(PoE Version)"
Small 4-inch PoE display for integration into home automation, as a control panel for light, sound and heating etc. The 220V terminals are not active in this version.
Special feature: 2 microphones have been installed and the device offers interfaces for RS485
| System | Dimension | 86,6mm*86,6mm*35,3mm |
| Display size | 4 inch | |
| CPU | PX30 Quad-Core Cortex-A35 ,1.5Ghz | |
| System | Android 8.1 | |
| Resolution | 480*480 | |
| Touch panel | 5-point capacitive touch panel, IPS | |
| RAM | 2G | |
| Rom | 8G | |
| Network | Wlan | 802.11b/g/n |
| Bluetooth | BT 4.0 | |
| Ethernet | 10M/100M | |
| I/O ports | RJ45 | Ethernet interface input (RJ-45 cable) |
| SD card | Yes, up to 64GB | |
| USB | Micro USB | |
| RS485 | RS485*1 | |
| Serial connection | yes | |
| Doorbell interface | no | |
| Alarm interface | no | |
| AUX | no | |
| Power supply | PoE af/at 15.4 Watt | |
| Features | Microphone | Dual Microphone |
| Cooling | Air-cooled | |
| Media formats | Video | MOV 1080P / AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF/ VOB |
| Audio | MP3 / WMA / WAV / AAC / FLAC / OGG | |
| Other | Camera | No camera |
| Battery | None | |
| Mounting bracket | Wall mounting / embedded in wall | |
| Colour | Black | |
| Power consumption | 2x10W MAX | |
| Physical button | Current on/off | |
| Working temperature | -5°~50° | |
| Language | Multi-language support |
Produktmerkmale:
| Arbeitsspeicher (RAM): | 2 |
| Betriebssystem: | Android 8 |
| Bluetooth: | ja |
| Chipset: | PX30 |
| Diagonale: | 4,0 |
| Einsatzbereiche: | Indoor |
| Farbe Displayrand: | schwarz |
| Farbe Gehäuse: | schwarz |
| Hauptspeicher: | 8 |
| Kamera: | nein |
| Mobilfunk: | nein |
| Montageart: | Unterputzdose eckig |
| Produktart: | Display |
| Stromversorgung: | PoE&Netzteil |
| Touchscreen: | Capacitiv |
| WLAN: | 2,4 |
