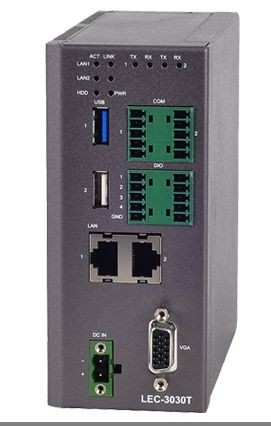

ALLNET DIN-RAIL / Hutschienen PC LEC-3030T - Atom E3815
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 154726
- vendor: ALLNET
- mnufacturer no.: LEC-3030T
- EAN No.: 4038816076588
- weight: 1kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
EU RoHS und REACH Erklärung
Key features
Compact-sized industrial grade box PC
Single-core Atom E3815... more
Product information "ALLNET DIN-RAIL / Hutschienen PC LEC-3030T - Atom E3815"
Key features
- Compact-sized industrial grade box PC
- Single-core Atom E3815
- ESD/surge protection on serial COM ports for harsh environments
- Wide operating temperature (LEC-3030T:-40~70°C)
- Fanless design with corrugated aluminum
- Support VGA display output
- DIN-Rail or wall mounting options
- Support 4x DI/O
- Dual GbE LAN ports, 1 x USB 2.0, 1 x USB 3.0 port
- 1 x SATA port
Overview
Lanner LEC-3030 Series is a compact industrial-grade fanless box PC featuring dual-core Atom E3815(codenamed BayTrail), DDR3L 1333MHz SO-DIMM memory up to 4GB, VGA display, wide operating temperature(LEC-3030T), DIN Rail/Wallmount options and a variety of Serial COM and LAN configurations for various industrial application needs. It is ideal for solar PV monitoring, wind turbine, smart meter, renewable energy or other modern IoT (Internet of Things) applications.
Specifications
| Platform | |
| CPU | Atom E3815 1.46GHz CPU |
| Chipset | SoC |
| Memory Technology | DDR3L SO-DIMM x1 |
| Memory Capacity | Up to 4 GB |
| Storage | |
| SATA storage | 1 x SATA port and HDD kit |
| I/O | |
| Ethernet controller | Intel i210-IT |
| Default LAN | 2 x RJ45 |
| Magnetic Isolation Protection | 1.5KV magnetic isolation protection |
| Serial ports | 2 x Isolated RS-232/422/485 + 1 x RS-232 pin header |
| Digital I/O | 1 x 2x5 pin terminal block for 4 x DI/DO |
| USB 2.0 | 1 x Type A |
| USB 3.0 | 1 x Type A |
| Power and Mechanical | |
| Power input | Phoenix contact 2-pin connector with lock, 12 ~ 36 Vdc power voltage |
| OS and Certifications | |
| Operating System | Microsoft Windows 7, Windows 7 Embedded Linux: Linux (Ubuntu), Linux: kernel 2.6 |
| Certifications | CE/FCC Class A, RoHS |
| Physical and Environmental | |
| Storage temperature | -40°C to 85°C |
| Operating temperature | -20°C to 55°C |
| Operating humidity | 5% to 95% (non-condensing) |
| Dimensions (W x H x D) | 52 mm x 130 mm x 127 mm (2.05" x 5.12" x 5.00") |
| Weight | 1 kg (2.2 lbs) |
| Watchdog | Watchdog timer 256 level time interval system reset, software programmable |
