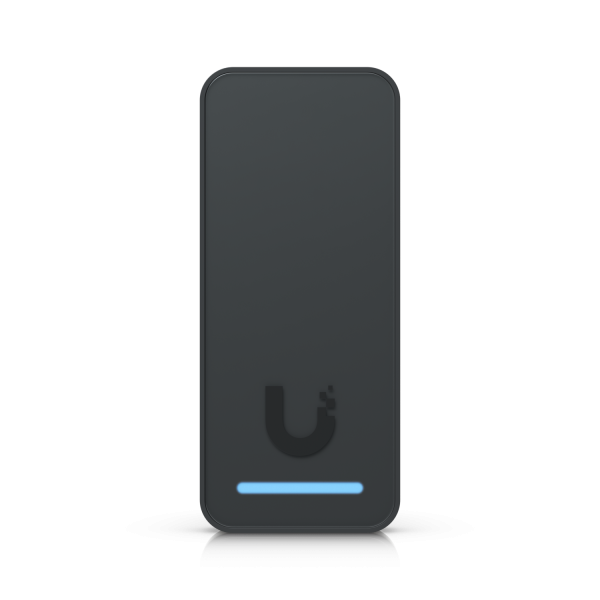

Ubiquiti UniFi Access Reader Gen3 • black • UA-G3-B

Preview: Ubiquiti UniFi Access Reader Gen3 • black • UA-G3-B

product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

Call us Mail us

EU RoHS und REACH Erklärung

stock: 0
part no.: 239897
vendor: Ubiquiti
mnufacturer no.: UA-G3-B
EAN No.: 810084697603
weight: 0.082kg
warranty: 12 months
Do you have any questions concerning this product?

Third generation compact access reader with Apple Touch Pass support. Highlights:... more

Close menu

Product information "Ubiquiti UniFi Access Reader Gen3 • black • UA-G3-B"

Third generation compact access reader with Apple Touch Pass support.

Highlights:

Unlock with an NFC card, the UniFi Identity mobile app or a Touch Pass
Supports unlocking with a hand gesture as a prompt to leave
Provides welcome messages when entering and exiting
Weather resistance according to IP55 (-30 to 45 °C)
Connection to the UniFi Access Hub üvia PoE

Technical data:

Mechanical
Dimensions	93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4 inches)
Weight	82 g (2.9 oz)
Favourite material	Polycarbonate, glass
Mounting material	Aluminium alloy
Mounting	In the wall, junction box
Weather resistance	IP55
Hardware
Network interface	(1) 10/100 MbE RJ45 connection
Connectivity	BLE 4.1 NFC
Power method	PoE UL 294 Class 2 power-limited power supply UL 60950-1/62368-1 LPS/PS2 power supply
Supported voltage range	48 V direct current
Max. Power consumption	5 W
ESD/EMP protection	Air: ±15kV, contact: ±8kV
Sensors	Proximity sensor
Speaker	(1) 8 Ohm, 0.7W
LEDs	(1) Status light (learn more)
Button	(1) Factory reset
NFC frequency	13.56 MHz
NFC read range	< 30 mm
NFC technology	ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa (ID only) NFC forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
Operating environment	Außen area
Operating ambient temperature	-30 to 45 °C (-22 to 113 °F)
Humidity during operation	5 to 90 % non-condensing
Software information	The software version of a product can be checked at https://unifi.ui.com üft.
UL 294 level	First attack: Level I Line safety: Level I Endurance: Level I Standby power: Level I
UL 294 declaration	Compliance with IEEE 802.3 specifications has not been verified under UL 294. The equipment shall comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
Requirements for PoE cabling	The recommended minimum power category is cable 5e. The power category used should correspond to the transmission speed required at the installation site. The minimum conductor cross-section for the connection between PSE or Power Injector and PD is 26 AWG (0.13 mm2 ⁾ for patch cables; 24 AWG (0.21 mm2 ⁾ for horizontal or riser cables.
CAN/ULC-60839-11-1 quality	Note assignment: I
Certifications	CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number and issue date or revision status	UA-G3, V01
Software
Administrative application	UniFi Access: Version 3.0.15 and higher
