ALLNET ALL3075v4 / Wireless socket, switchable via IP with P

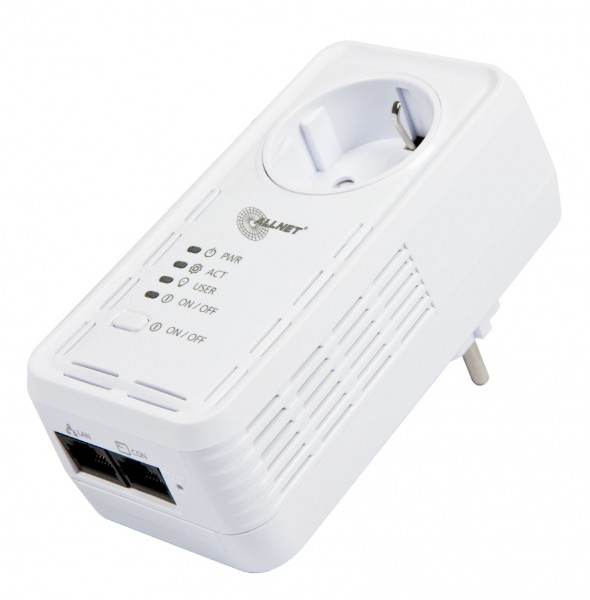

Preview: ALLNET ALL3075v4 / Wireless socket, switchable via IP with P

product pictures similar, may differ from the product description!

net price plus shipping costs

Arriving soon. Delivery Date unknown

Call us Mail us

Due to the holiday "2. Weihnachtstag" your order will not be dispatched until the next working day.

Downloads

EU RoHS und REACH Erklärung

stock: 0
part no.: 104248
vendor: ALLNET
mnufacturer no.: ALL3075v4
EAN No.: 4038816104243
weight: 0.45kg
warranty: 24 months
Do you have any questions concerning this product?

WLAN power socket, switchable via network / IP with performance measurement (positive/negative)... more

Close menu

Product information "ALLNET ALL3075v4 / Wireless socket, switchable via IP with P"

WLAN power socket, switchable via network / IP with performance measurement (positive/negative)

• Allows switching of connected consumers (up to 16A resistive load) via integrated webserver - new release 3.2
• 10/100 Mbit RJ45 network interface
• IEEE802.11b/g/n Wireless LAN with 300 Mbps
• With integrated power plug socket
• for 200 - 250 V AC
• Voltage and consumption measurement
• Time controlled, programmatically or manually switching

The ALL3075v4 network power socket allows switching of connected devices via network or IP. The ALLNET device acts like a adapter between power outlet and electric consumer. Connected to a computer network, the ALL3075v4 is accessable via its own IP address. Both, con guration and operation
can be done with any network based OS. No additional software is needed, the only requirement is a web browser.

The ALL3075v4 measures and stores the energy consumption of any connected device. The switching operations can be done manually, based on time, consumption or by individual programming. Several devices of the The ALL3075v4 can also combined to a grid. The network power socket works
perfect with various ALLNET automation solutions, like the ALL369x Powermeter or ALL3418v2, 3419, ALL3500, ALL3505, ALL4500 and ALL5000 central units.

The ALLNET ALL3075v4 adapter is based on the brandnew Release 3.2 user interface. In addition to several visible innovations, Release 3.2 offers for the rst time even the possibility to integrate multiple ALLNET sensors or actuators quickly and easily via JSON. This allows central administration of
multi-site based measurement data. This supports administrators with a perfect clarity and facilitates their work dramatically. In additon to the RJ45 network interface the ALL3075v4 offers also a Wireless-N interface with a maximum transfer-speed of 300 MBit. This allows easy integration in wireless networks and seamless usage and con guration from every smart phone or tablet. The ALL3075v4 can be con gured for client or access point usage.

The „server control“ function allows easy control and even reset of connected PC or Server systems. Server control sends automated ping requests to the connected server. If the PC or Server system does not answer in a pre-con gured time, the power outlet will quit the transfer and reset the
connected device to restore functionality.

Technical Details:

Network:	10BaseT 100BaseTX
Netzwork connector:	RJ45
Wireless LAN / WiFi:	2,4 GHz Wireless N, 150 Mbps 1T1R
WiFi Chipset:	Ralink RT3352
WiFi Securityt:	WEP 64/128bit, WPA, WPA2
Standards:	IEEE 802.3 IEEE 802.3u IEEE 802.11b/g/n
Protocol:	HTTP/HTTPS TCP/IP
Management:	per Webbrowser, XML/JSON
supported OS:	all network supporting OS
supported Voltage:	200 - 250 Volt
switching current:	max. 16 Ampere = until 3680 ohmic load
power measurement:	consumption (negativ) feed-in from Solar-Panels (positive)
Housing:	PVC with European Socket
Environment:	working temparature : 0 ~ 40 °C working humidity: 10% ~ 85% (non condensing) storage temperature: -20 ~ 60 °C storage humidity: 5% ~ 90% (non condensing)
dimensions:	125 x 68 x 40 (60) mm
weight:	200 Gramm (only the Adapter)
