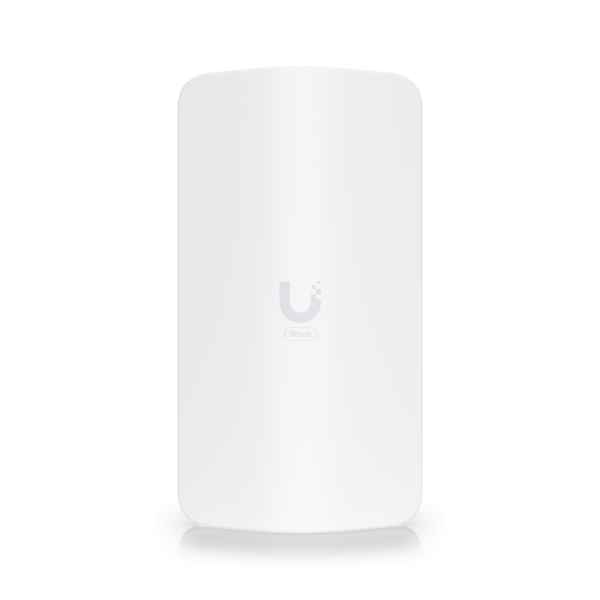

Ubiquiti Wave PtMP access point • 60 GHz • 5 Gbps • 1x 2,5 GbE • Wave-AP-Micro

Preview: Ubiquiti Wave PtMP access point • 60 GHz • 5 Gbps • 1x 2,5 GbE • Wave-AP-Micro

product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

Call us Mail us

EU RoHS und REACH Erklärung

stock: 0
part no.: 231987
vendor: Ubiquiti
mnufacturer no.: Wave-AP-Micro
weight: 1.3kg
warranty: 12 months
Do you have any questions concerning this product?

Large-scale 60 GHz PtMP access point with wave technology. Highlights: Max. Total... more

Close menu

Product information "Ubiquiti Wave PtMP access point • 60 GHz • 5 Gbps • 1x 2,5 GbE • Wave-AP-Micro"

Large-scale 60 GHz PtMP access point with wave technology.

Highlights:

Max. Total throughput: 5 Gbit/s
90° sector coverage
Weatherproof 5 GHz backup radio (max. throughput: 800 Mbit/s)
(1) 2.5 GbE WAN connection
31* client capacity:
- — Wave Pro (6 km connection range)
- — Wave Long-Range (6 km connection range)
- — Wave Nano (4 km connection range)
- — Wave Pico (0.9 km connection range)
Integrated GPS and Bluetooth

_{*FW version 3.4.0 and higher}

_{Technical data:}

Mechanical
Dimensions	284 x 156 x 76 mm (11.2 x 6.1 x 3 inches)
Weight	1.3 kg
Housing material	Aluminium alloy, UV-stabilised polycarbonate
Mounting material	Stainless steel, UV-stabilised polycarbonate
Diameter of the pole mount	35 to 60 mm (1.4 to 2.4") on the tube diameter
Wind load	87 N at 200 km/h (20 lbf at 125 mph)
Weather resistance	IPX6
Hardware
Processor	Quad-core ARM® Cortex®-A53 with 1.4 GHz
Memory	DDR3L 512 MB
Network interface	(1) 1/2.5 GbE RJ45 port
Max. Power consumption	24W
Power method	Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), only for 44–54 V DC
Power supply	48 V DC, 0.65 A, 2.5 GbE PoE adapter (included)
Supported voltage range	44–54 V direct current 22–27 V direct current
GPS	Yes
Button	Factory reset
LEDs	Power supply, Ethernet, GPS, connection
Operating ambient temperature	-40 to 60 °C (-40 to 140 °F)
Humidity during operation	5 to 95 % non-condensing
Certifications	FCC, IC, CE
Software
Operating mode	PtMP access point
Ubiquiti-specific functions	Wave AI, detection protocol
Services	UISP, Ping watchdog, NTP client, SNMP
Tools	Antenna alignment, detection programme, ping, traceroute, speed test, cable test, site survey *FW version 3.3.0 and higher
Network	Bridge mode
Application requirements	UISP Web: Version 2.2.11 and higher UISP Mobile iOS™: Version 2.25.1 and higher UISP Mobile Android™: Version 2.27.5 and higher
System
Total throughput	5 Gbit/s
Number of supported clients	31* *FW version 3.4.0 and higher
Max. Range	Connection to a Wave Pro: up to 6 km Connection to a Wave Long-Range: up to 6 km Connection to a Wave Nano: up to 4 km Connection to a Wave Pico: up to 0.9 km
Encryption	WPA2-PSK (AES)
RF
Operating frequency*	57–71 GHz *Depending on the regulatory region
Channel bandwidth	2160, 1080, 540* MHz *FW version 3.3.0 and higher
Control channels*	58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depending on the regulatory region.
Modulation	16QAM, QPSK
Antenna gain	20 dBi
Polarisation	Vertical linear
Beam width	Azimuth: 3 dB 90° Elevation: 3 dB 7°
Electrical lowering	0°
Backup-RF
WiFi standard	802.11ax (WLAN 6)
Operating frequency* US/CA Worldwide	U-NII-1 5150–5250 MHz U-NII-2A 5250–5350 MHz U-NII-2C 5470–5725 MHz U-NII-3 5725–5850 MHz 5150–5875 MHz *Depending on the regulatory region
Channel bandwidth	20, 40, 80 MHz
Modulation	BPSK (1/2), QPSK (1/2), QPSK (3/4), 16QAM (1/2), 16QAM (3/4), 64QAM (2/3), 64QAM (3/4), 64QAM (5/6), 256QAM (3/4), 256QAM (5/6), 1024QAM (3/4), 1024QAM (5/6)
Antenna gain	13.5 dBi
Polarisation	Dual-linear
Beam width	Azimuth: 6 dB 90° Elevation: 6 dB 25°
Cross-pole insulation	10 dB
Electrical attenuation	0°
LEDs
Power	White flashing: Boot process is running White: not connected to UISP application Blue: connected to UISP application Flashing blue: localisation in progress Blue/white: Firmware upgrade in progress
Ethernet	Blinking blue: Ethernet traffic detected
GPS	Blue: reception of at least (4) GPS satellite signals
Link	Blue: 60 GHz connection White: 5 GHz link
