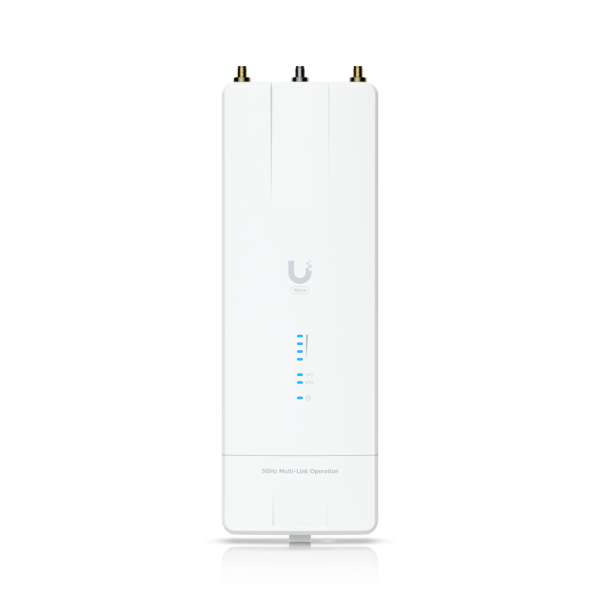

Ubiquiti Wave MLO5 radios • 5 GHz • 5+ Gbps • 1x 10 GbE • 1x SFP+ • Wave-MLO5

Preview: Ubiquiti Wave MLO5 radios • 5 GHz • 5+ Gbps • 1x 10 GbE • 1x SFP+ • Wave-MLO5

product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

Call us Mail us

Due to the holiday "Allerheiligen" your order will not be dispatched until the next working day.

EU RoHS und REACH Erklärung

stock: 0
part no.: 241815
vendor: Ubiquiti
mnufacturer no.: Wave-MLO5
EAN No.: 810084699218
weight: 0.575kg
warranty: 12 months
Do you have any questions concerning this product?

Powerful dual 5 GHz Wi-Fi 7-based radios with Multi-Link Operation (MLO) technology for improved... more

Close menu

Product information "Ubiquiti Wave MLO5 radios • 5 GHz • 5+ Gbps • 1x 10 GbE • 1x SFP+ • Wave-MLO5"

Powerful dual 5 GHz Wi-Fi 7-based radios with Multi-Link Operation (MLO) technology for improved throughput and reliable connectivity.

Highlights:

5 GHz, connection range over 100 km
5+ Gbit/s throughput
Special spectral analysis radio
Channel puncturing
(1) 10 GbE and (1) SFP+ port
Integrated Bluetooth
Compatible with airMAX antenna, airFibre X antenna, UISP key and UISP horn

Technical data:

Mechanical
Dimensions	249.3 x 82 x 47.6 mm (9.8 x 3.2 x 1.9 inches)
Weight	575 g
Housing material	Aluminium alloy, UV-resistant polycarbonate
Mounting material	Wristband: stainless metal Universal mount: UV-resistant polycarbonate
Diameter of the pole mount	25.4 to 50.8 mm (1 to 2") on the tube diameter
Weather resistance	IPX6
Hardware
Processor	Quad-core IPQ5322 at 1.5 GHz
Reminder	DDR4 1 GB
Network interface	(1) 10 GbE RJ45 port (1) 10G SFP+ port
HF connector	(2) RP-SMA (waterproof) (1) GPS (waterproof)
Max. Power consumption	20 W
Power method	Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), only for 4454 V DC
Power supply	54 V DC, 0.56 A, 10 GbE PoE adapter (included)
Supported voltage range	4454 V direct current 2227 V direct current
Max. Transmission power* 5 GHz	24 dBm *Depending on the regulatory region.
MIMO 5 GHz	(2) 2 x 2
GPS	Yes
Button	(1) Factory reset
LEDs	(1) Power supply, (1) Ethernet, (1) GPS, (4) Signal
Operating ambient temperature	-40 to 60 °C (-40 to 140 °F)
Humidity during operation	5 to 95 % non-condensing
Certifications	FCC, IC, CE
Software
Operating mode	PtP
Services	UISP, Ping watchdog, NTP client
Tools	Alignment, speed test, ping, traceroute, detection, site survey
Network	Bridge mode
Total throughput	5+ Gbit/s
Max. Range*	100 km *Throughput and range values may vary depending on ambient conditions.
Encryption	WPA3-PSK (AES)
RF
Operating frequency*	5180 5320, 5500 5700, 5745 5825 MHz *Depending on the regulatory region.
Channel bandwidth	Radio frequency 1: 20, 40, 80, 160 MHz Radio frequency 2: 20, 40, 80, 160, 240 MHz
Modulation	BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (?), 64QAM (¾), 64QAM (?), 256QAM (¾), 256QAM (?), 1024QAM (¾), 1024QAM (?), 4096QAM (¾), 4096QAM (?)
