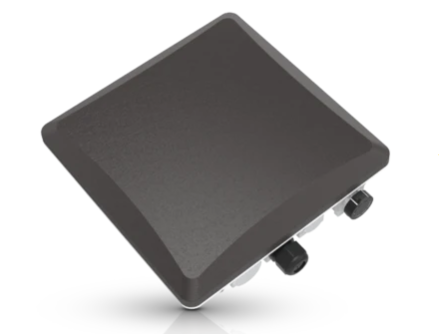

RAK Wireless · LoRa · WisGate Edge Pro · RAK7289CV2 · 16 channels · with 4G LTE

RAK Wireless WisGate Edge Pro Outdoor Gateway

RAK7289CV2 16 Channel, with 4G/LTE (EG95-E EMEA Region)

&overview

The RAK7289 WisGate Edge Pro is an ideal gateway for commercial IoT applications. With its industrial-grade components, it achieves a high standard of reliability.

Supports up to 16 LoRa channels, multi-backhaul with Ethernet, Wi-Fi and cellular connectivity. There is an optional dedicated connection for various power supply options, solar panels and batteries. Thanks to the new housing design, the LTE, Wi-Fi and GPS antennas can be accommodated within the housing.

The gateway offers a solid out-of-the-box experience for rapid deployment. As the software and user interface are based on OpenWRT, it is also perfect for developing your own applications (via the open SDK).

This makes the RAK7289 suitable for any application scenario, whether for rapid deployment or customisation of the user interface and functionality.

Product features

Hardware

• IP67/NEMA 6 enclosure in industrial quality with cable glands
• PoE (802.3af) + &overvoltage protection
• Two LoRa concentrators with 16 channels
• Backhaul: Wi-Fi, LTE and Ethernet
• GPS
• Supports DC 12V or solar power supply with power monitoring (solar kit optional)
• Internal antenna for Wi-Fi, 4G LTE & GPS, external antenna for LoRa (N-Type Female-Connectors)

Software

• Built-in network server
• OpenVPN
• Software and user interface based on OpenWRT
• LoRaWAN 1.0.3
• LoRa frame filtering (node whitelisting)
• MQTT v3.1 bridging with TLS encryption
• Buffering of LoRa frames in packet forwarder mode in the event of an NS failure (no data loss)
• Full duplex (optional)

Scope of delivery

16 channels with integrated LTE Europe module ·  with 4G/LTE (EG95-E EMEA region)

• 1 x gateway
• 1 x Ethernet gable gland
• 1 x POE injector
• 1 x mounting brackets
• 1 x set of screws

!!! LoRa antennas not included in the scope of delivery, see accessories !!!
