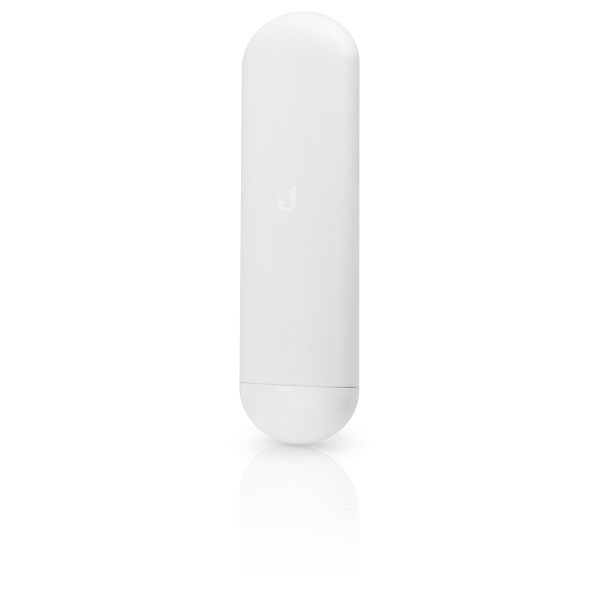

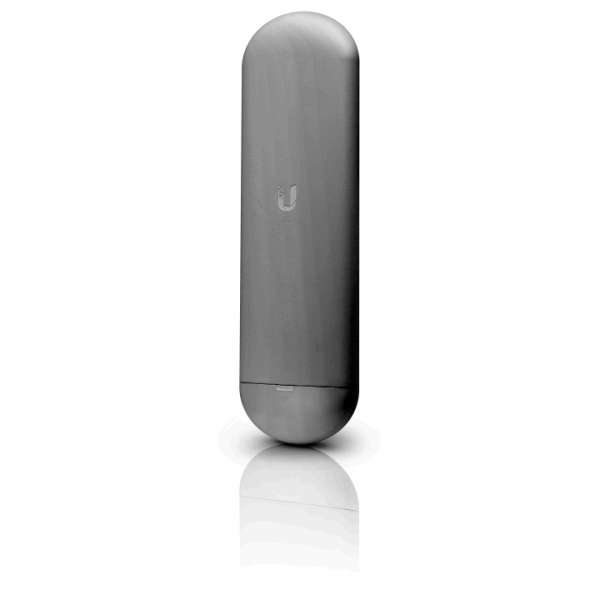

Ubiquiti NanoStation 5AC, NS-5AC
- stock: 0
- part no.: 150183
- vendor: Ubiquiti
- mnufacturer no.: NS-5AC
- EAN No.: 817882021371
- weight: 0.8kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
![](https://shop.allnet.dk/themes/Frontend/ALLNET/frontend/_public/src/img/download_icon_datasheet.png)
![](https://shop.allnet.dk/themes/Frontend/ALLNET/frontend/_public/src/img/download_icon_rohs.png)
UISP-supported WiFi radio designed for point-to-point and customer premises applications.... more
Product information "Ubiquiti NanoStation 5AC, NS-5AC"
UISP-supported WiFi radio designed for point-to-point and customer premises applications.
5 GHz, 15+ km link range
450+ Mbps throughput
Secondary LAN with PoE out support
Dedicated spectral analysis radio
Dedicated WiFi management radio
Technical Specifications
Mechanical | |
---|---|
Dimensions | Without mount: 257 x 84 x 41 mm (10.1 x 3.3 x 1.6") With mount: 257 x 84 x 30 mm (10.1 x 3.3 x 1.2") |
Weight | 233 g (8.2 oz) |
Enclosure material | UV-resistant plastic |
Mounting | Pole and wall mounting kits (Included) |
Hardware | |
Networking interface | (2) 10/100/1000 MbE ports |
Power method | PoE Alternative A (Pairs 1, 2+; 3, 6 Return) 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) |
Power supply | 24V, 0.5A Gigabit PoE supply (Included) |
Supported voltage range | 24V ±10% |
Max. power consumption | 9W |
ESD/EMP protection | Air/contact: ±24 kV |
LEDs | Power, Ethernet, (4) signal strength |
Operating temperature | -40 to 70° C (-40 to 158° F) |
Operating humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC |
System | |
Gain | 16 dBi |
Channel bandwidths | 10/20/30/40/50/60/80 MHz |
Cross-pol isolation | 20 dB min. |
Max. VSWR | 1.6:1 |
Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
Polarization | Dual linear |
Operating Frequency (MHz) | |
Worldwide | 5150-5875 MHz |
USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150-5250 MHz 5250-5350 MHz 5240-5725 MHz 5725-5850 MHz |
Management Radio (MHz) | |
Worldwide | 2412 - 2472 MHz |
US/CA | 2412 - 2462 MHz |
