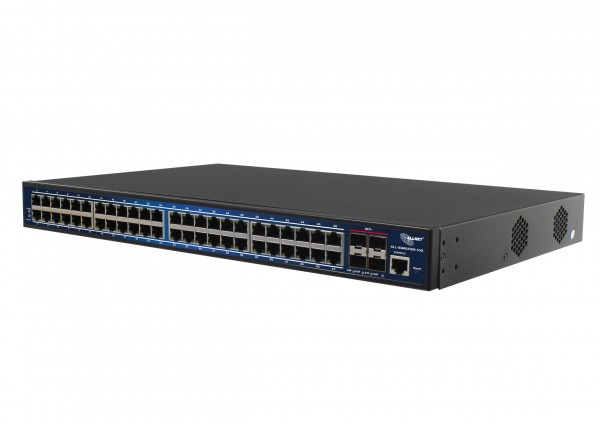

ALLNET Switch full managed 48 Port Gigabit / 48x LAN / 4x SFP+ / 19" / "ALL-SG8652M-10G"

ALLNET Switch full managed 48 Port Gigabit / 48x LAN / 4x SFP+ / 19" / "ALL-SG8652M-10G"
ALLNET Switch full managed 48 Port Gigabit / 48x LAN / 4x SFP+ / 19" / "ALL-SG8652M-10G"
ALLNET Switch full managed 48 Port Gigabit / 48x LAN / 4x SFP+ / 19" / "ALL-SG8652M-10G"
ALLNET Switch full managed 48 Port Gigabit / 48x LAN / 4x SFP+ / 19" / "ALL-SG8652M-10G"
product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

ALLNET Switch full managed 48 Port Gigabit / 24x LAN / 4x SFP+ / 19" / "ALL-SG8652M-10G"... more
Product information "ALLNET Switch full managed 48 Port Gigabit / 48x LAN / 4x SFP+ / 19" / "ALL-SG8652M-10G""

ALLNET Switch full managed 48 Port Gigabit / 24x LAN / 4x SFP+ / 19" / "ALL-SG8652M-10G"

Highlights:

  • 48 ports Gigabit Layer2+ switch architecture (ports 1~48).
  • 4 ports SFP+ 10G slots compatible for optional GBICSs (ports 48~52).
  • Support L2+ Switching features including 802.1Q VLAN, Mirroring, Port isolation, IGMP Snooping, DHCP Snooping, LLDP,  IP Source Guard, ARP inspection, ACLs etc.
  • Support spanning tree STP(802.1D) and RSTP(802.1W) and MSTP(802.1s).
  • Support enhanced management through WEB, CLI, TELNET, SSH, SNMP.
  • Support cable diagnosis and SFP DDM.
  • Support PoE management, like PoE schedule, PoE PD-alive.
  • Support G.8032 quick ring protocol. Self-recovery time <20ms.
  • Support IEEE1588 v2, transparent clock(TC)
  • Support DDM, SFP digital diagnostics monitoring
  • Support IPV4 and IPV6 static routing functions
  • Support memory and CPU monitoring
  • 4KV surge protection, 6KV contact/8KV air protection
  • 19" angle or wall/table mounting possible

Full L2+ managed Ethernet aggregation /core fiber switch with 48* 10/100/1000M RJ45 ports and 4*1/10G SFP+ fiber slot ports, Built-in 60W power supply. Support 1U/19 inch rack installation.

ALL-SG8652M-10G is an aggregation /core fiber switch with 48* 10/100/1000M RJ45 ports and 4*1/10G SFP+ fiber slot ports, Built-in 60W power supply. Support 1U/19 inch rack installation. With full L2 management functions, such as VLAN, QoS, ACL, IPv4/IPv6 routing,  ALL-SG8652M-10G can be used in various applications, such as video surveillance, VoIP, wireless coverage etc with a afforadble cost.

10Gbps Uplink Capacity for Big Bandwidth Application
10G Ethernet is a big leap in the evolution of Ethernet. The 10G SFP+ slots support dual-speed 10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. It is a cost-effective solution for SMB network to achieve the maximum performance of the 10G networks

Solution for IPv6 Networking
With the IPv6/IPv4 dual stack and other management functions, ALL-SG8652M-10G is the best choice for IP CCTV surveillance, VoIP and wireless solution providers to develop the IPv6 network. Meanwhile the fiber switch help the SMBs to upgrade their network infrastructures to the IPv6 era without any extra investment.

Robust Layer 2 Features
ALL-SG8652M-10G can be programmed for advanced  Ethernet switch management functions, such as port aggregation, Q-in-Q VLAN, Spanning Tree Protocol, QoS, bandwidth control, ERPS IGMP/MLD snooping etc. ALL-SG8652M-10G allows the operation of a high-speed trunk combining multiple ports.

Powerful Security Functions
ALL-SG8652M-10G provides a comprehensive access control list (ACL) for enforcing security to the edge. It can be used to restrict to network access by denying packets based on source and destination IP address, TCP/UDP port number or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.

Enhanced Security and Traffic Control
ALL-SG8652M-10G supports DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.

User-friendly Secure Management
For efficient management, ALL-SG8652M-10G managed switch series is equipped with console, web and SNMP management interfaces. With management interface, ALL-SG8652M-10G offers an easy-to-use, platform independent management and configuration facility. ALL-SG8652M-10G supports SNMP and it can be managed via any management software based on the standard SNMP v1 or v2 Protocol. Meanwhile ALL-SG8652M-10G offers Cisco-like command via Telnet or console port and customer doesn’t need to learn new command from these switches. Moreover, ALL-SG8652M-10G offers the remotely secure management by supporting SSH, SSL and SNMP v3 connection where the packet content can be encrypted at each session.

Intelligent SFP DDM Function
ALL-SG8652M-10G supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Fast Recovery Redundant Ring for Critical Network Applications

The ALL-SG8652M-10G supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple Ring network, the recovery time of data link can be as fast as 20ms.

1588 Time Protocol for Industrial Computing Networks

The ALL-SG8652M-10G is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.

Technische Daten:

Model

ALL-SG8652M-10G

Copper Ports

48-10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

Fiber Ports

4x1G/10GBASE-X SFP interfaces, supports 1G/10Gbps dual mode

Console Ports

1 x RS-232-to-RJ45 serial port (115200, 8, N, 1)

Switch Architecture

Store-and-Forward

Switch Fabric

176 Gbps/non-blocking

Throughput

130.94Mpps @64 bytes

Address Table

32K entries

Share Data Buffer

32Mb

Jumbo Frame

9600 Bytes

SDRAM

2Gb

Flash Memory

128Mb

Flow Control

IEEE 802.3x pause frame for full-duplex

Back pressure for half-duplex

Reset Button

>2 sec.: Factory default and reset

Power Supply

100~240V AC, 50/60Hz, 4A (max.)

Power Consumption

Max. 370 watts

LED Indicators

Power: Green

Solid on- power work normal, off- power disconnected

System: Green

Blink-work normally, solid on- soft work abnormal, fast blink- soft upgrade

10/100/1000T RJ45 Interfaces (Port 1 to Port 48): 1000 LNK/ACT (Green),10/100 LNK/ACT (yellow),

Blink- port connected with data transmission; Solid on- port connected without data transmission

1G/10G SFP Interfaces (Port 49 to Port 52): Blue

Blink- port connected with data transmission; Solid on- port connected without data transmission

EMC

Surge Immunity:

4KV Per: IEC61000-4-5

ESD Protection:

ESD Level 4 Per: IEC61000-4-2

EFT Level 4 Per: IEC61000-4-4

Layer2 Functions

Port configuration

Auto-negotiation

Flow Control

Port Mirror: TX/RX/BOTH; Many-to-1 monitor

CPU Mirror

Traffic statistics

Link Aggregation

Static link aggregation

LACP (Dynamic Trunk/Static Trunk)

Algorith based on Source/Destination MAC

Algorithm based on Source/Destination IP

MAC Table

Aging Time

Static MAC address

Dynamic MAC address management

VLAN

4094 Active VLANs
4094 VID
802.1Q Tag VLAN
Port VLAN
Protocol VLAN
MAC VLAN
Voice VLAN
802.1ad Q-in-Q tunneling
Private VLAN (Protected port)
GARP/GVRP

ACL

512ACLs
L2, L3 e L4
Time-based ACL
IP ACL
MAC ACL
MAC-IP ACL
User-Defined ACL
ICMPv6

Spanning tree

802.1D Spanning Tree Protocol (STP)

802.1w Rapid Spanning Tree Protocol (RSTP)

802.1s Multiple Spanning Tree Protocol (MSTP)

Loop Guard

Root Guard

TC-BPDU Guard

BPDU Guard

BPDU Filter

Ring Protection

<20ms G.8032 ERPS Ring

Fast Ring

Multicast

1024 groups
IGMP v1/v2/v3 Snooping, Fast Leave
MLD Snooping
Multicast VLAN
IGMP filter
MVR
Multicast Routing

QOS

8 mapping IDs to 8 level priority queues
CoS port-based
CoS 802.1p-based
CoS DSCP-based
Scheduling algorithms SP, WRR, SP+WRR
Storm Control (Broadcast, Multicast, Unknown Unicast)
Bandwidth control per port
SWRR, DWRR for Scheduling
Flow Redirect
Precedence
TOS
Rate Limiting(Ingress/Egress)
Stri Priority

Security Features

Port Security
MAC address filter
ARP Association (Manual, ARP scanning, DHCP snooping)
ARP Protection
AAA
DAI
DoS (Denial of Service)
Classification of packages based on: End.MAC, IP End, TCP / UDP Ports,
Protocol Type;
802.1x Authentication (port-based e MAC-based)
TACACS/TACACS+ Authentication
RADIUS Authentication
DHCP Filter
Guest VLAN
SSLv2/SSLv3/TLSv1
SSHv1/SSHv2
Restriction of WEB access based on: IP Address, And. MAC and Port;
Port Isolation
Loopback detection

Management

SNMP v1/v2c/v3 with Full Private MIBs
RMON 4 groups
WEB (HTTP/HTTPS)
CLI (Telnet, Console, SSHv1/v2)
Firmware upgrade via console/web/TFTP
Configuration Backup/Reload
Dual Firmware
LLDP
Configuration Export/Import
CDP Aware
OAM (IEEE802.3ah)
CFM (IEEE802.1ag)
sFlow
Telnet client

Synchronization, IEEE1588

Support IEEE1588v2 transparent clock

Other Features

DNS Client
DHCP Relay
DHCP Client
DHCP Snooping
DHCP Option 66
DHCP Option 67
DHCP Option 82
NTP/SNTP Client
UPNP
UDLD

Maintenance

Cable Diagnostics
Ping
SFP DDM (Digital Diagnostics Monitoring)
Thermal protection
System log (Local and Remote)
Memory and CPU Monitoring
Tracert/ tracert 6

Layer 3 functions

Static Routing

IPv4 Unicast: Static Routing(Software Base)

IPv6 Unicast: Static Routing(Software Base)

IPV6

IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
Ping6
Telnet(v6)
Http/Https
Interface IPV6
ACL IPV6

Dimension

440x240x44.5 mm

Weight

3,3 kg

Working Temperature

-10 °C to 45 °C

Storage Temperature

-20 °C to 70 °C

MTBF

50,000hrs

Produktmerkmale:

Anzahl Ports PoE/LAN: 0/48
Belüftung Switch: Mit Lüfter
Einsatzort Switch: 19"
LAN Geschwindigkeit: 1Gbit/S
Management: full managed
SFP Geschwindigkeit: SFP+ 10GBit, SFP 1GBit
SFP Port Anzahl: 4
