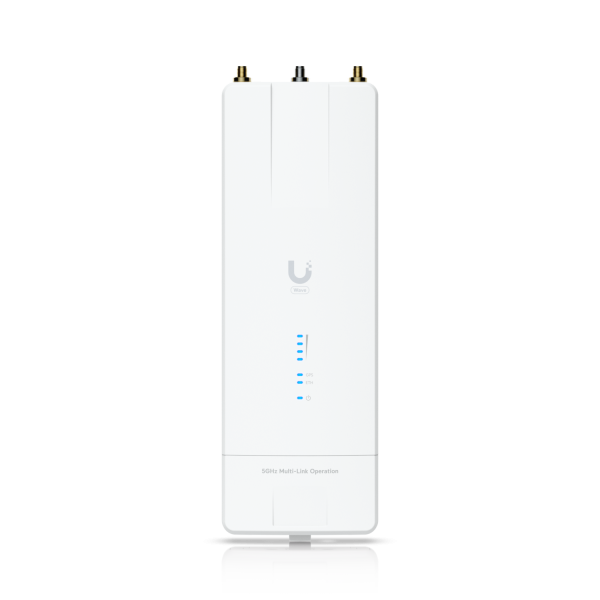

Ubiquiti Wave MLO5 radios • 5 GHz • 5+ Gbps • 1x 10 GbE • 1x SFP+ • Wave-MLO5

Ubiquiti Wave MLO5 radios • 5 GHz • 5+ Gbps • 1x 10 GbE • 1x SFP+ • Wave-MLO5
Ubiquiti Wave MLO5 radios • 5 GHz • 5+ Gbps • 1x 10 GbE • 1x SFP+ • Wave-MLO5
Ubiquiti Wave MLO5 radios • 5 GHz • 5+ Gbps • 1x 10 GbE • 1x SFP+ • Wave-MLO5
Ubiquiti Wave MLO5 radios • 5 GHz • 5+ Gbps • 1x 10 GbE • 1x SFP+ • Wave-MLO5
Ubiquiti Wave MLO5 radios • 5 GHz • 5+ Gbps • 1x 10 GbE • 1x SFP+ • Wave-MLO5
product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Powerful dual 5 GHz Wi-Fi 7-based radios with Multi-Link Operation (MLO) technology for improved... more
Product information "Ubiquiti Wave MLO5 radios • 5 GHz • 5+ Gbps • 1x 10 GbE • 1x SFP+ • Wave-MLO5"
Powerful dual 5 GHz Wi-Fi 7-based radios with Multi-Link Operation (MLO) technology for improved throughput and reliable connectivity.

Highlights:

  • 5 GHz, connection range over 100 km
  • 5+ Gbit/s throughput
  • Special spectral analysis radio
  • Channel puncturing
  • (1) 10 GbE and (1) SFP+ port
  • Integrated Bluetooth
  • Compatible with airMAX antenna, airFibre X antenna, UISP key and UISP horn

Technical data:

Mechanical
Dimensions 249.3 x 82 x 47.6 mm (9.8 x 3.2 x 1.9 inches)
Weight 575 g
Housing material Aluminium alloy, UV-resistant polycarbonate
Mounting material Wristband: stainless metal
Universal mount: UV-resistant polycarbonate
Diameter of the pole mount 25.4 to 50.8 mm (1 to 2") on the tube diameter
Weather resistance IPX6
Hardware
Processor Quad-core IPQ5322 at 1.5 GHz
Reminder DDR4 1 GB
Network interface (1) 10 GbE RJ45 port
(1) 10G SFP+ port
HF connector (2) RP-SMA (waterproof)
(1) GPS (waterproof)
Max. Power consumption 20 W
Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-), only for 44–54 V DC
Power supply 54 V DC, 0.56 A, 10 GbE PoE adapter (included)
Supported voltage range 44–54 V direct current
22–27 V direct current
Max. Transmission power*
5 GHz

24 dBm
*Depending on the regulatory region.
MIMO
5 GHz

(2) 2 x 2
GPS Yes
Button (1) Factory reset
LEDs (1) Power supply, (1) Ethernet, (1) GPS, (4) Signal
Operating ambient temperature -40 to 60 °C (-40 to 140 °F)
Humidity during operation 5 to 95 % non-condensing
Certifications FCC, IC, CE
Software
Operating mode PtP
Services UISP, Ping watchdog, NTP client
Tools Alignment, speed test, ping, traceroute, detection, site survey
Network Bridge mode
Total throughput 5+ Gbit/s
Max. Range* 100 km
*Throughput and range values may vary depending on ambient conditions.
Encryption WPA3-PSK (AES)
RF
Operating frequency* 5180 – 5320, 5500 – 5700, 5745 – 5825 MHz
*Depending on the regulatory region.
Channel bandwidth Radio frequency 1: 20, 40, 80, 160 MHz
Radio frequency 2: 20, 40, 80, 160, 240 MHz
Modulation BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (?), 64QAM (¾), 64QAM (?), 256QAM (¾), 256QAM (?), 1024QAM (¾), 1024QAM (?), 4096QAM (¾), 4096QAM (?)
