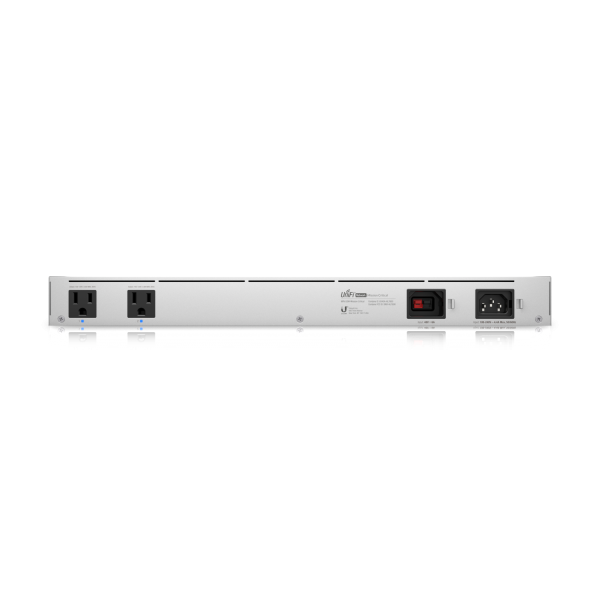

Ubiquiti Unifi Switch Mission Critical / 4x GbE PoE+ / 4x GbE PoE++ / 120W total PoE / USW-Mission-Critical
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 219788
- vendor: Ubiquiti
- mnufacturer no.: USW-Mission-Critical
- EAN No.: 8100100798790
- weight: 9.2kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
A switch with integrated 368Wh Lithium-ion battery, capable of providing uninterruptible power... more
Product information "Ubiquiti Unifi Switch Mission Critical / 4x GbE PoE+ / 4x GbE PoE++ / 120W total PoE / USW-Mission-Critical"
A switch with integrated 368Wh Lithium-ion battery, capable of providing uninterruptible power for 8 devices.
(4) GbE PoE+, (4) GbE PoE++ ports
(1) GbE port
(2) 230V AC outputs; 120W total PoE available
Battery backup power system
Internal battery 368Wh
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 442 x 480 x 44 mm (17.4 x 18.9 x 1.7") |
| Weight | Without mount: 9 kg (19.9 lb) With mount: 9.2 kg (20.3 lb) |
| Enclosure material | SGCC steel |
| Mount material | SGCC steel |
| Supported rack depth | 700 to 1000 mm (27.6 to 39.4") |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (9) GbE RJ45 ports |
| PoE interface | (4) PoE/PoE+ (Pins 1, 2+; 3, 6-) (4) 60W PoE++ (Pair A 1, 2+; 3, 6-)(Pair B 4, 5+; 7, 8-) |
| Total non-blocking throughput | 9 Gbps |
| Switching capacity | 18 Gbps |
| Forwarding rate | 26.78 Mpps |
| Power method | (1) Universal AC input, 100—240V AC, 4.4A Max, 50/60 Hz (1) External battery DC input 48V DC, 6A (1) Internal Lithium-Ion battery, 368Wh |
| Power supply | Universal AC input: AC/DC, internal, 240W External battery port: DC, external, 240W |
| Max. power consumption | 240W 50W (Excluding PoE output) |
| PoE budget | 120W |
| Power output | US: (2) Power control outlets, 110V AC, 0.72A Max., 60 Hz EU: (2) Power control outlets, 230V AC, 0.35A Max., 50 Hz |
| Power output budget | 80W |
| Max. PoE wattage per port by PSE | PoE+: 30W PoE++: 60W |
| Voltage range PoE mode | PoE: 44—57V PoE+/PoE++: 50—57V |
| ESD/EMP protection | Air/contact: ± 24kV |
| LCM display | (1) 1.3" touchscreen |
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| Ethernet | Green: 1 Gbps Amber: 10/100 Mbps |
| PoE | Amber: PoE/PoE+/PoE++ |
| Power output | Blue: active |
| Application Requirements | |
| UniFi Network | Version 6.2.26 and later |
