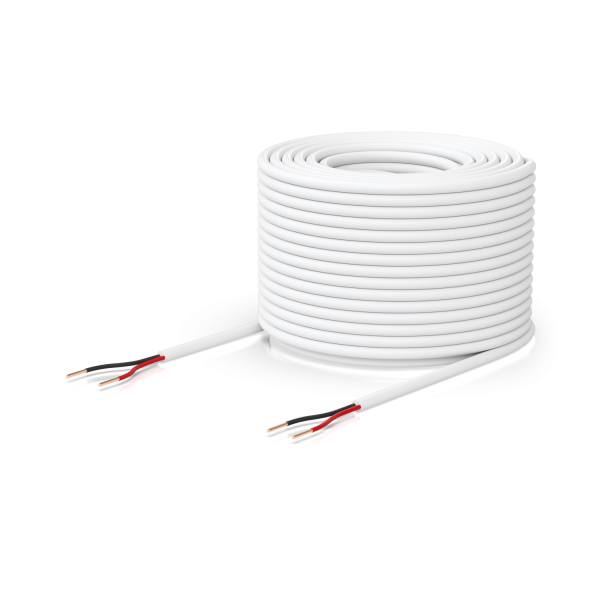

Ubiquiti UniFi Access Door Lock Relay Cable / UACC-Cable-DoorLockRelay-2P
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 222678
- vendor: Ubiquiti
- mnufacturer no.: UACC-Cable-DoorLockRelay-2P
- EAN No.: 810084691625
- weight: 5.6kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
A 500-foot (152.4 m) spool of one or two-pair, low-voltage cable.
1-Pair Relay Cable:... more
Product information "Ubiquiti UniFi Access Door Lock Relay Cable / UACC-Cable-DoorLockRelay-2P"
A 500-foot (152.4 m) spool of one or two-pair, low-voltage cable.
1-Pair Relay Cable: Connects an electric/magnetic lock to an Access Hub
2-Pair Relay Cable: Connects an electric/magnetic lock and door position sensor to an Access Hub
1-Pair Relay Cable:
— (2) 18 AWG conductors for an electric/magnetic lock
2-Pair Relay Cable:
— (2) 18 AWG conductors for an electric/magnetic lock
— (2) 22 AWG conductors for a door position sensor
Cable length 152.4 m
Plenum-rated
| Specifications | |
|---|---|
| Weight | UACC-Cable-DoorLockRelay-2P: 5.6 kg kg (12.3 lb) UACC-Cable-DoorLockRelay-1P: 4.58 kg (10.1 lb) |
| Cable length | 152.4 m (500 ft) |
| Jacket OD | UACC-Cable-DoorLockRelay-2P: 4.5 mm (0.18") UACC-Cable-DoorLockRelay-1P: 4.2 mm (0.17") |
| Jacket material | Thermoplastic elastomer (TPE) |
| Jacket color | White |
| Conductor wire gauge | UACC-Cable-DoorLockRelay-2P: 18/22 AWG UACC-Cable-DoorLockRelay-1P: 18 AWG |
| Insulation material | Semi-rigid polyvinyl chloride (SR-PVC) |
| Insulation color | UACC-Cable-DoorLockRelay-2P: black/red (18AWG), amber/white (22AWG) UACC-Cable-DoorLockRelay-1P: black/red (18AWG) |
| Number of conductors | UACC-Cable-DoorLockRelay-2P: 4 UACC-Cable-DoorLockRelay-1P: 2 |
| Conductor material | Solid bare copper |
| Max. pull tension | UACC-Cable-DoorLockRelay-2P: 24.2 kgf UACC-Cable-DoorLockRelay-1P: 16.4 kgf |
| Min. bend radius | UACC-Cable-DoorLockRelay-2P: 56 mm (2.2") UACC-Cable-DoorLockRelay-1P: 33 mm (1.3") |
| Conductor DCR | UACC-Cable-DoorLockRelay-2P: 23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG) UACC-Cable-DoorLockRelay-1P: 23.2 ohm/km (18AWG) |
| Voltage | 36V DC |
| Flame rating | VW-1 |
| Current rating | 18AWG: 2A for 500 ft length 22AWG: 1A for 500 ft length |
| Storage temperature | -45 to 65° C (-40 to 149° F) |
| Operating temperature | -45 to 65° C (-40 to 149° F) |
