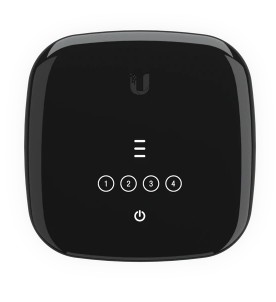

Ubiquiti UFiber GPON UF-WIFI6 GPON CPE

Ubiquiti UFiber GPON UF-WIFI6 GPON CPE
product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

GPON customer-premises equipment (CPE) with WiFi6 support. (1) GPON port Integrated... more
Product information "Ubiquiti UFiber GPON UF-WIFI6 GPON CPE"

GPON customer-premises equipment (CPE) with WiFi6 support.

(1) GPON port

Integrated 4-port GbE switch

Integrated WiFi 6

Note: This device is only compatible with the UFiber OLT. It cannot be used with third-party OLTs.

Technical Specifications

Mechanical
Dimensions 140.8 x 141.5 x 31.65 mm (5.54 x 5.57 x 1.25")
Weight 415 g (0.99 lb)
Enclosure material UV-stabilized polycarbonate
Hardware
Processor Dual-core MIPS 1004 Kc at 900 MHz
Memory 256 MB RAM
Total non-blocking line rate 2.488 Gbps downstream
1.244 Gbps upstream
Networking interfaces (1) SC/APC, ITU-G.984 GPON WAN port
(4) GbE RJ45 LAN ports

WiFi 802.11ax 5/2.4 GHz channels
PoE interface (1) PoE in, 24V passive PoE
Management interface Ethernet in-band
PON
Button Factory-reset
Max. power consumption 11W
Power method USB-C 5VDC, 3A
24V passive PoE, 0.5A
Power supply 5VDC, 3A power adapter, 1.5 m cord (included)
Passive PoE 2-pair (4, 5+; 7, 8-)
Supported voltage range 10 to 30VDC passive PoE
5VDC adapter
Normal TX range of optical module 0.5 to 5 dBm
Normal RX range of optical module -8 to -28 dBm
Max. WiFi TX power
2.4 Ghz
5 Ghz

20 dBm
20 dBm
MIMO
2.4 Ghz
5 Ghz

2 x 2
2 x 2
Max. WiFi radio rate
2.4 Ghz
5 Ghz

300 Mbps
1.2 Gbps
Antenna Gain
2.4 GHz
5 GHz

1 dBi
3 dBi
Operating temperature -15 to 45° C (5 to 113° F)
Operating humidity 10 to 90% noncondensing
Certifications FCC, IC, CE
LEDs
PON status (3) signal LEDs
All-OFF: bootup
1x orange: signal too low (< -28 db)
1x white: signal low (>= -28 db)
2x white: signal good (>= -25 db)
3x white: signal strong (>= -11 db)
1x orange + 2x white: signal too strong (>= -8 db)
3x orange: no signal
LEDs alternate between orange + white + orange and a signal strength indicator: No authority
Ethernet Steady white: link up
Blinking white: activity
OFF: link down
Power White: ON
Software
Mode ONU/ONT layer 2/3 Ethernet switch
Services Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features
Utilities Dashboard, monitoring, alarms, and logs
Other Remote reset, remote reboot, remote firmware upgrade, VLAN support
Security GEM Port Encryption
Ubiquiti specific features UISP Mobile App
WiFi standards 802.11 b/g
WiFi 4/WiFi 5/WiFi 6
Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES)
Fiber
Operating wavelength 1310 nm TX/1490 nm RX
Optical interface downstream nominal bit rate 2488.32 Mbit/s
Optical interface upstream nominal bit rate 1244.16 Mbit/s
Physical reach 20 km
Supported Data Rates
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11ax (WiFi 6) 8.6 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80)
