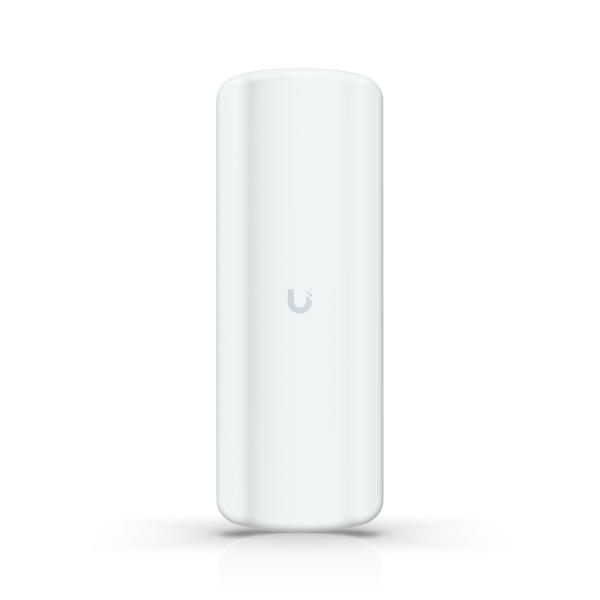

Ubiquiti Wireless Device Bridge Pro Sector • AC400 • 2x2 • Outdoor • 1 GbE • PoE • UniFi • UDB-Pro-Sector

Preview: Ubiquiti Wireless Device Bridge Pro Sector • AC400 • 2x2 • Outdoor • 1 GbE • PoE • UniFi • UDB-Pro-Sector

product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

EU RoHS und REACH Erklärung

stock: 0
part no.: 243557
vendor: Ubiquiti
mnufacturer no.: UDB-Pro-Sector
EAN No.: 810084698037
weight: 0.835kg
warranty: 12 months
Do you have any questions concerning this product?

5 GHz point-to-multipoint access point that wirelessly connects over 40 Device Bridge Pro... more

Close menu

Product information "Ubiquiti Wireless Device Bridge Pro Sector • AC400 • 2x2 • Outdoor • 1 GbE • PoE • UniFi • UDB-Pro-Sector"

5 GHz point-to-multipoint access point that wirelessly connects over 40 Device Bridge Pro clients at distances of over 5 km.

Highlights:

Enables point-to-multipoint (PtMP) connectivity with over 40 UDB Pro clients
90° sector coverage
Power supply via PoE
Mast mounting
Weatherproof (outdoors)

Technical data:

Mechanical
Dimensions	360.9 x 129.6 x 71.4 mm (14.2 x 5.1 x 2.8 inches)
Weight	Without mount: 782 g (1.7 lb) With bracket: 835 g (1.8 lb)
Walking material	UV-resistant polycarbonate
Mounting material	UV-stabilised polycarbonate, stainless steel
Diameter of the pole mount	0.92.4" (2460 mm) at the tube diameter
Wind load	128.2 N at 200 km/h (28.8 lbf at 125 mph)
Weather resistance	IPX6
Hardware
Network interface	(1) GbE RJ45 connection
Management interface	Ethernet -WLAN
Power method	PoE
Power supply	UniFi PoE switch
Supported voltage range	42.557 V direct current
Max. Power consumption	6W
Max. Transmission power 2.4 GHz 5 GHz 6 GHz	25 dBm
Max. Data rate 2.4 GHz 5 GHz 6 GHz	400 Mbit/s (BW40)
MIMO 2.4 GHz 5 GHz 6 GHz	2 x 2
Antenna gain 2.4 GHz 5 GHz 6 GHz	17 dBi
Antenna	Internal
Range	5+ km
LEDs	Power, Ethernet
Button	Factory reset
Mounting	Pole (included in the scope of delivery)
Ambient temperature	-40 to 60 °C (-40 to 140 °F)
Humidity during operation	5 to 95 % non-condensing
Certifications	CE, FCC, IC
Software
WLAN standards	802.11a/n/ac
Wireless security	WPA2 AES (always on)
Number of supported clients	50+
Operating frequency* USA/CA Worldwide	U-NII-1 51505250 MHz U-NII-2A 52505350 MHz U-NII-2C 54705725 MHz U-NII-3 57255850 MHz 51505875 MHz *Depending on the regulatory region
Channel bandwidth	20/40 MHz
Max. conducted transmission power	25 dBm (combined)
Modulation	BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (?), 64QAM (¾), 64QAM (?), 256QAM (¾), 256QAM (?)
