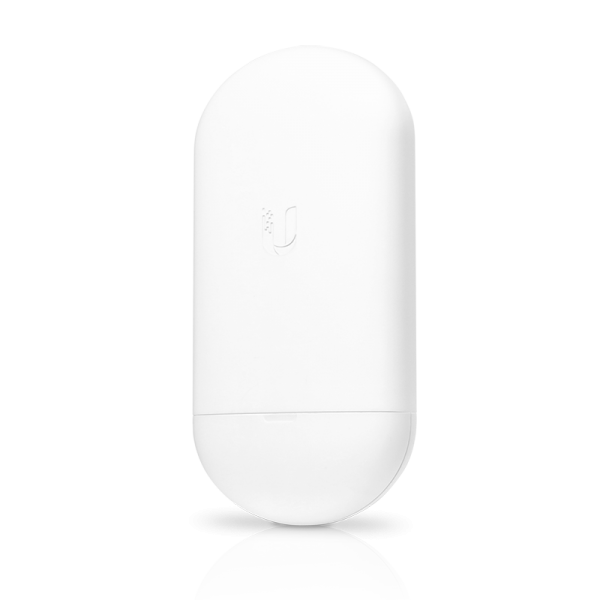

Ubiquiti airMAX NanoStation 5AC Lok
![Ubiquiti airMAX NanoStation 5AC Lok](https://shop.allnet.dk/media/image/a5/dc/79/AIMG11752E24AA_600x600.jpg)
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 178400
- vendor: Ubiquiti
- mnufacturer no.: Loco5AC-5
- EAN No.: 0817882027267
- weight: 1.408kg
- warranty: 12 months
- Do you have any questions concerning this product?
![](https://shop.allnet.dk/themes/Frontend/ALLNET/frontend/_public/src/img/download_icon_rohs.png)
Compact, UISP-ready WiFi radio sporting a classic NanoStation design and an updated airMAX AC... more
Product information "Ubiquiti airMAX NanoStation 5AC Lok"
Compact, UISP-ready WiFi radio sporting a classic NanoStation design and an updated airMAX AC chipset.
5 GHz, 10+ km link range
450+ Mbps throughput
Dedicated spectral analysis radio
Technical Specifications
Mechanical | |
---|---|
Dimensions | 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33") |
Weight | 0.18 kg (6.35 oz) |
Enclosure material | UV-stabilized plastic |
Mounting | Pole mounting kit (Included) |
Hardware | |
Networking interface | (1) GbE RJ45 port |
Power method | Passive PoE 2-Pair (Pairs 4, 5+; 7, 8 Return) |
Power supply | 24V, 0.3A Gigabit PoE supply* *PoE adapter not included. |
Supported voltage range | 24V ±10% |
Max. power consumption | 7W |
LEDs | Power, Ethernet, (4) signal strength |
Operating temperature | -40 to 70° C (-40 to 158° F) |
Operating humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC |
System | |
Gain | 13 dBi |
Channel bandwidths | 10/20/30/40/50/60/80 MHz |
Cross-pol isolation | 20 dB min. |
Max. VSWR | 1.8:1 |
Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
Polarization | Dual linear |
Operating Frequency (MHz) | |
Worldwide | 5150-5875 MHz |
USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150-5250 MHz 5250-5350 MHz 5240-5725 MHz 5725-5850 MHz |
Management Radio (MHz) | |
Worldwide | 2412 - 2472 MHz |
US/CA | 2412 - 2462 MHz |
