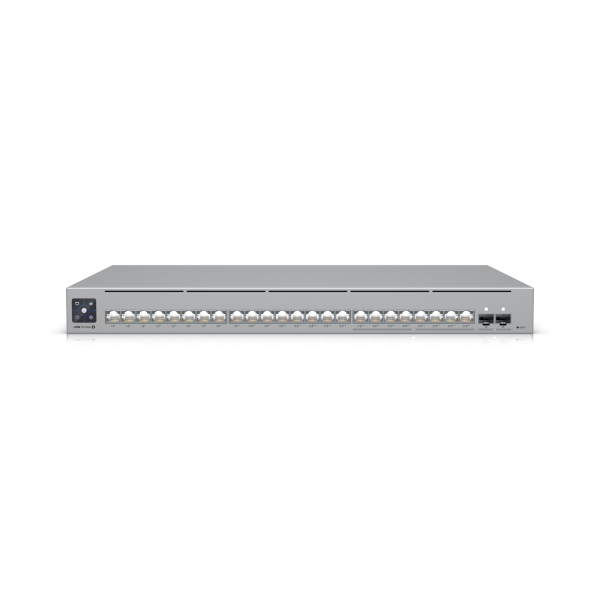

Ubiquiti UniFi Switch Pro Max / 24 Port / 400W / PoE++ / 2 SFP+ Ports / USW-Pro-Max-24-PoE
- stock: 0
- part no.: 222903
- vendor: Ubiquiti
- mnufacturer no.: USW-Pro-Max-24-PoE
- EAN No.: 810084692714
- weight: 5.5kg
- warranty: 12 months
- Do you have any questions concerning this product?
![](https://shop.allnet.dk/themes/Frontend/ALLNET/frontend/_public/src/img/download_icon_rohs.png)
A 24-port, Layer 3 Etherlighting™ switch capable of high-power PoE++ output.... more
Product information "Ubiquiti UniFi Switch Pro Max / 24 Port / 400W / PoE++ / 2 SFP+ Ports / USW-Pro-Max-24-PoE"
A 24-port, Layer 3 Etherlighting™ switch capable of high-power PoE++ output.
Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(8) 2.5 GbE PoE++ ports
(16) GbE ports including (8) PoE+ and (8) PoE++
(2) 10G SFP+ ports
DC power backup ready
400W total PoE availability
Technical Specifications
Mechanical | |
---|---|
Dimensions | 442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7") |
Weight | Without mounting brackets: 5.1 kg (11.3 lb) With mounting brackets: 5.2 kg (11.5 lb) |
Enclosure material | SGCC steel |
Hardware | |
Management interface | Ethernet In-Band |
Networking interface | (16) GbE RJ45 ports (8) 1/2.5 GbE RJ45 ports (2) 10G SFP+ ports |
PoE interface | (8) PoE/PoE+ (Pins 1, 2+; 3, 6-) (16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
Total non-blocking throughput | 56 Gbps |
Switching capacity | 112 Gbps |
Power method | Universal input, 100—240V AC, 50/60 Hz USP RPS DC input |
Power supply | AC/DC, internal, 450W |
Supported voltage range | 100—240V AC |
Max. power consumption | 50W (Excluding PoE output) |
Total available PoE | 400W |
Max. PoE wattage per port by PSE | PoE: 15.4W PoE+: 30W PoE++: 60W |
Voltage range PoE mode | PoE: 44—57V PoE+: 50—57V |
LCM display | (1) 1.3" touchscreen |
Button | Factory reset |
Operating temperature | -5 to 40° C (23 to 104° F) |
Operating humidity | 10 to 90% noncondensing |
Certifications | CE, FCC, IC |
Etherlighting™ | |
Ethernet | Locating Speed/link Native VLAN/network |
SFP+ | Locating Speed/link Native VLAN/network |
LEDs | |
System | Status |
RPS | Status |
