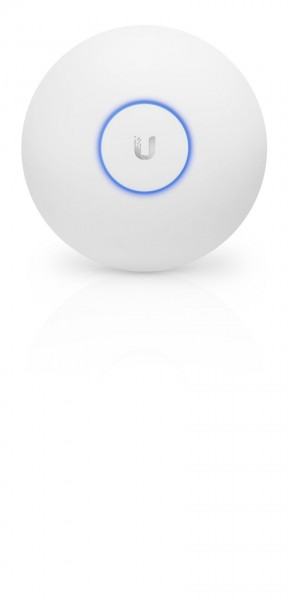

Ubiquiti Unifi Access Point Long Range / Indoor / 2,4 & 5 GHz / AC / UAP-AC-LR
- stock: 0
- part no.: 124844
- vendor: Ubiquiti
- mnufacturer no.: UAP-AC-LR
- EAN No.: 810354023507
- weight: 1.033kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
![](https://shop.allnet.dk/themes/Frontend/ALLNET/frontend/_public/src/img/download_icon_datasheet.png)
![](https://shop.allnet.dk/themes/Frontend/ALLNET/frontend/_public/src/img/download_icon_datasheet.png)
![](https://shop.allnet.dk/themes/Frontend/ALLNET/frontend/_public/src/img/download_icon_rohs.png)
Long-range, dual-band, 802.11ac Wave 1 access point with a 1.2+ Gbps aggregate throughput... more
Product information "Ubiquiti Unifi Access Point Long Range / Indoor / 2,4 & 5 GHz / AC / UAP-AC-LR"
Long-range, dual-band, 802.11ac Wave 1 access point with a 1.2+ Gbps aggregate throughput rate.
185 m² (2,000 ft²) coverage
250+ connected devices
WiFi 5 (3x3 MIMO)
Powered using PoE*
*PoE power adapter included with single unit purchases.
Technical Specifications
Mechanical | |
---|---|
Dimensions | Ø175.7 x 43.2 mm (Ø6.9 x 1.7") |
Weight | Without mount: 240 g (8.5 oz) With mount: 315 g (11.1 oz) |
Hardware | |
Networking interface | (1) GbE port |
Management interface | Ethernet |
Power method | PoE 24V passive PoE (Pairs 4, 5+; 7, 8 return) |
Power supply | UniFi PoE switch 24V, 0.5A Gigabit PoE adapter* *5-packs do not come with PoE adapters. |
Max. power consumption | 6.5W |
Max.TX power 2 GHz 5 GHz |
24 dBm 22 dBm |
MIMO 2.4 GHz 5 GHz |
3 x 3 2 x 2 |
Throughput rate 2.4 GHz 5 GHz |
450 Mbps 867 Mbps |
Antenna gain 2.4 GHz 5 GHz |
3 dBi 3 dBi |
Button | Factory reset |
Mounting | Wall/ceiling (Included) |
Operating temperature | -10 to 70° C (14 to 158° F) |
Operating humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC |
Software | |
WiFi standards | 802.11 a/b/g/n/r/k/v/ac |
Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
BSSID | Up to 8 per radio |
VLAN | 802.1Q |
Advanced QoS | Per-user rate limiting |
Guest traffic isolation | Supported |
Power save | Supported |
WMM | Voice, video, best effort, and background |
Concurrent clients | 250+ |
Supported Data Rates (Mbps) | |
802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11b | 1, 2, 5.5, 11 Mbps |
802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11n | 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) |
802.11ac | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
