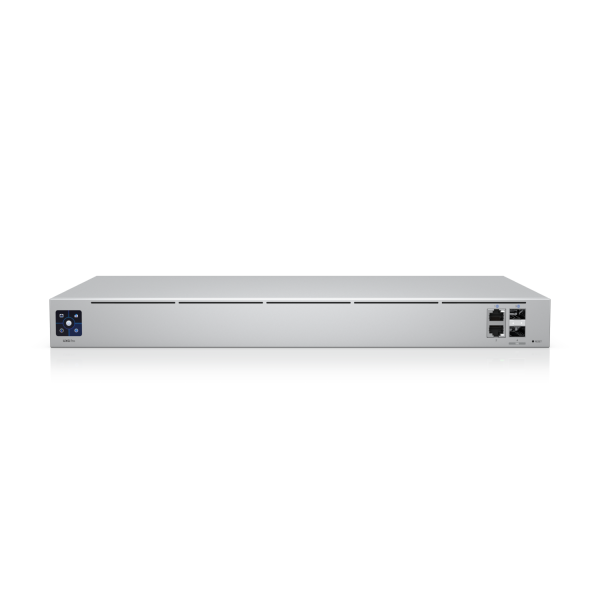

Ubiquiti UniFi Next-Generation Security Gateway Pro / Dual-WAN Gateway / UXG-Pro
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 210476
- vendor: Ubiquiti
- mnufacturer no.: UXG-Pro
- EAN No.: 8100100735252
- weight: 3.5kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Dual-WAN security gateway designed to protect medium to large-sized networks with... more
Product information "Ubiquiti UniFi Next-Generation Security Gateway Pro / Dual-WAN Gateway / UXG-Pro"
Dual-WAN security gateway designed to protect medium to large-sized networks with enterprise-class firewall configuration and threat management features.
Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
(1) 10G SFP+* and (1) GbE WAN port
(1) 10G SFP+* and (1) GbE LAN port
1U rackmount
DC power backup-ready
*Pair with an official SFP+ Module or SFP+ to RJ45 Adapter for the best experience.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2") |
| Weight | 3.4 kg (7.5 lb) |
| Enclosure materials | Front panel: aluminum CNC Top cover/base: SGCC steel |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| Memory information | 2 GB DDR4 |
| Management interface | Ethernet |
| Networking interface | LAN: (1) 1 GbE RJ45 port (1) 10G SFP+ port WAN: (1) 1 GbE RJ45 port (1) 10G SFP+ port |
| Power method US Worldwide |
(1) Universal AC input, 125V AC, 2.7A max., 60 Hz (1) RPS DC input, 11.5V DC, 2.87A (1) Universal AC input, 200–240V AC, 1.7A max., 50/60 Hz (1) RPS DC input, 11.5V DC, 2.87A |
| Power supply | AC/DC, internal, 50W |
| Max. power consumption | 30W |
| ESD/EMP protection | Air: ± 15kV, contact: ± 8kV |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Operating temperature | -10 to 40° C (14 to 104° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance | Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
| Next-generation security | Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking | License-free SD-WAN* WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport* and Identity Enterprise VPN** Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support *When paired with a Cloud Key or Official UniFi Hosting. **When paired with a Cloud Key. |
| LEDs | |
| Ethernet | Green/amber |
| SFP+ | White/green |
| AC outlet/ RPS | Blue |
| Software | |
| Management application | UniFi Network: Version 5.14.11 and later |
