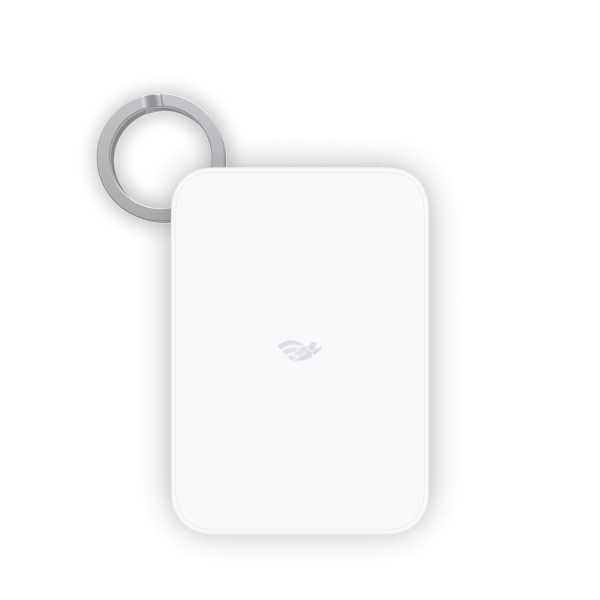

Ubiquiti WiFiMan Wizard
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 217193
- vendor: Ubiquiti
- mnufacturer no.: WM-W
- EAN No.: 810010079695
- weight: 0.032kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
A portable spectrum analyzer designed for the WiFiMan iOS and Android mobile app.
2.4 GHz... more
Product information "Ubiquiti WiFiMan Wizard"
A portable spectrum analyzer designed for the WiFiMan iOS and Android mobile app.
2.4 GHz and 5 GHz unlicensed band scanning
240 minutes continuous scanning battery life
BLE smartphone pairing with USB-C charging port
iPhone Magsafe attachable support*
*A mag-safe case is required to attach this device to an iPhone.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 78.5 x 50.5 x 7.9 mm (3.1 x 2 x 0.3") |
| Weight | 32 g (1.1 oz) |
| Enclosure material | Plastic |
| Weatherproofing | IP55 |
| Hardware | |
| Management interface | Bluetooth |
| Power method | Li-ion battery |
| Power supply | Rechargeable Li-ion battery, 3.7V DC, 300mAh |
| Max. power consumption | 32.4mW |
| Charger voltage | USB-C, 5V DC/1A |
| LED | White/blue/red |
| Buttons | (1) Power (1) Factory-reset |
| Operating temperature | 0 to 40° C (32 to 104° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| SSID Scan | |
| Frequency range | 2.4 to 2.5 GHz 5.15 to 5.85 GHz |
| Amplitude range | -96 dBm to 0 dBm |
| Amplitude resolution | 1 dBm |
| Software | |
| Management application | UniFi WiFiman iOS™: Version 0.18.0 and later UniFi WiFiman Android™: Version 1.15.0 and later |
