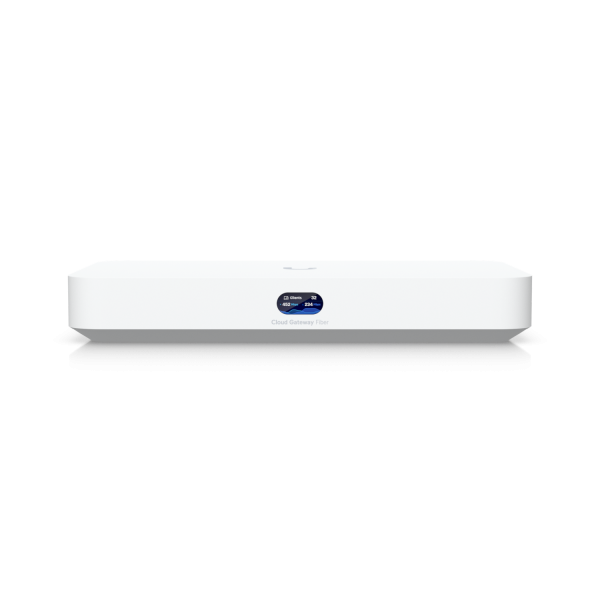

Ubiquiti UniFi Cloud Gateway Fiber • UniFi OS Console • 1x 10 GbE • 4x 2,5 GbE • 2x SFP+ • UCG-Fiber
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 241797
- vendor: Ubiquiti
- mnufacturer no.: UCG-Fiber
- EAN No.: 8101771612880
- weight: 1.37kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Desktop 10G Cloud Gateway with integrated PoE switch, selectable NVR storage and full UniFi... more
Product information "Ubiquiti UniFi Cloud Gateway Fiber • UniFi OS Console • 1x 10 GbE • 4x 2,5 GbE • 2x SFP+ • UCG-Fiber"
Desktop 10G Cloud Gateway with integrated PoE switch, selectable NVR storage and full UniFi application support.
Highlights:
- Includes the complete UniFi application suite for device management
- Manages over 50 UniFi devices and over 500 clients
- 5 Gbit/s routing with IDS/IPS
- (1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
- (1) 10G SFP+ LAN port
- Integrated 4-port switch with (1) PoE+ port
- NVMe SSD storage slot*
*NVMe SSD not included. A tray accessory is required for the installation of third-party SSDs.
Technical data:
| Mechanical | |
|---|---|
| Dimensions | 212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2 inches) |
| Weight | 696 g |
| Favourite material | Polycarbonate |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A73 with 2.2 GHz |
| System memory | 3 GB DDR4 |
| NVR memory | Wählbare NVMe SSD up to 2 TB* *No storage option does not include NVMe SSD. A tray accessory is required for the installation of third-party SSDs. 1/2 TB option includes tray accessory and NVMe SSD. |
| Management interface | Ethernet Bluetooth |
| Network interface | LAN: (1) 10G SFP+ port (4) 2.5 GbE RJ45 ports WAN: (1) 10G SFP+ port (1) 10 GbE RJ45 port |
| PoE interface | (1) PoE+ (pair A 1, 2+; 3, 6-) |
| IDS/IPS throughput | 5 Gbit/s |
| Power method | Power supply unit, 54 V DC, 1.1 A |
| Supported voltage range | 100–240 V alternating current |
| Max. Power consumption | 29.4 W (without PoE output) |
| PoE budget | 30 watts |
| Max. PoE power per port through PSE | 30 watts |
| Power range PoE mode | 50–57 V direct current |
| ESD/EMP protection | Air: ± 4kV, contact: ± 8kV |
| LCM display | 0.96" status display |
| Button | Factory reset |
| Operating ambient temperature | 0 to 40 °C (32 to 104 °F) |
| Humidity during operation | 5 to 95 % non-condensing |
| Certifications | CE, FCC, IC |
| Gateway functions | |
| Performance | Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application-, domain- and country-based QoS Application and device type identification Additional internet failover with LTE backup Reporting on internet quality and performance |
| Next generation security | Application-based firewall rules Signature-based IPS/IDS threat detection Content, country, domain and advert filtering VLAN/subnet-based traffic segmentation Complete stateful firewall |
| Advanced networking features | Licence-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN Teleport and Identity VPN with one click Policy-based WAN and VPN routing DHCP relay Customisable DHCP server IGMP proxy IPv6 ISP support |
| LEDs | |
| Ethernet | Grün: Connection/activity . Yellow: PoE-powered |
| SFP+ | Grün: Link/Activity |
