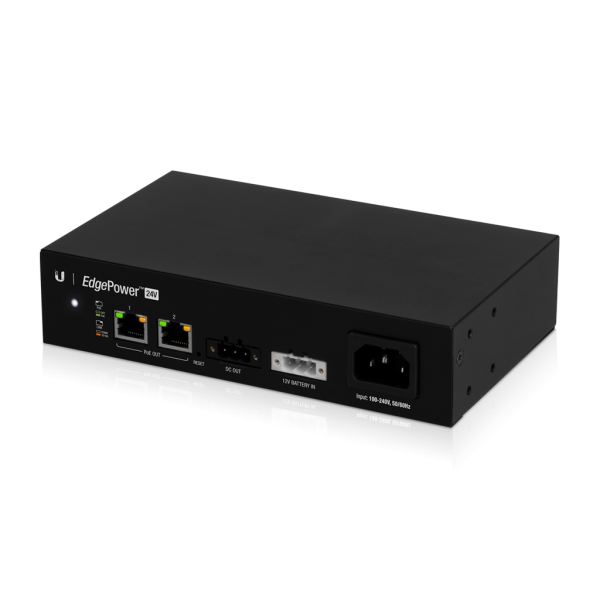

Ubiquiti EdgePower EP-24V-72W
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 176812
- vendor: Ubiquiti
- mnufacturer no.: EP-24V-72W
- EAN No.: 817882027915
- weight: 1.456kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
EdgeMAX uninterruptible power supply.
Reliable and convenient UPS for WISPs
UISP... more
Product information "Ubiquiti EdgePower EP-24V-72W"
EdgeMAX uninterruptible power supply.
Reliable and convenient UPS for WISPs
UISP remote management
Automatic alerts for power outages
Note. Connect to a lead-acid battery only. Using another battery type could be hazardous.
Technical Specifications
| EP-24V-72W | |
|---|---|
| Model | EP-24V-72W |
| Dimensions | 192 x 43.7 x 115 mm (7.56 x 1.72 x 4.53") |
| Weight | 650 g (1.43 lb) |
| Interfaces Networking Management |
(2) 10/100 Mbps RJ45 Ports Ethernet In-Band |
| PoE Output | (2) 24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
| DC Output | 24V, 3A |
| AC Input | 100-240VAC, 50-60 Hz, Universal Input |
| Battery Input | DC Terminal Block |
| AC Input | AC/DC 72W |
| Battery Input | 12VDC Lead Acid Battery* *Battery not included. Connect to a lead-acid battery only. Using another battery type could be hazardous. |
| System | 2W |
| Output | 72W |
| System | Status |
| RJ45 Data Ports | PoE; Link/Activity |
| ESD/EMP Protection | Air: ± 12 kV, Contact: ± 12 kV |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
| EP-54V-72W | |
| Model | EP-54V-72W |
| Dimensions | 115 x 192 x 43.7 mm (4.53 x 7.56 x 1.72") |
| Weight | 650 g (1.43 lb) |
| Interfaces Networking Management |
2) 10/100 Mbps RJ45 Ports Ethernet In-Band |
| PoE Output | (2) 54VDC Passive PoE (Pins 4, 5+; 7, 8-) |
| DC Output | 54V, 1.3A |
| Power Method AC Input Battery Input |
100-240VAC, 50-60 Hz, Universal Input DC Terminal Block |
| Power Supply AC Input Battery Input |
AC/DC 72W 12VDC Lead Acid Battery* *Battery not included. Connect to a lead-acid battery only. Using another battery type could be hazardous. |
| Max. Power Consumption System Output |
2W 72W |
| LEDs System RJ45 Data Ports |
Status PoE; Link/Activity |
| ESD/EMP Protection | Air: ± 12 kV, Contact: ± 12 kV |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
| EP-54V-150W | |
| Model | EP-54V-150W |
| Dimensions without Mount Brackets | 299.8 x 286.9 x 42.55 mm (11.89 x 11.3 x 1.68") |
| Weight without Mount Brackets | 2.7 kg (5.95 lb) |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply Module | 54V, 150W AC/DC Model EP-54V-150W-AC Installed in PSU 1 |
| Maximum Power Output PSU | 150W (1 PSU Module) 300W (2 PSU Modules @ 150W Each) |
| LEDs Power Ethernet PSU |
System On/Off Management Port Link PSU1+PSU2, PSU1/PSU2 |
| Networking Interface | (1) 10/100 RJ45 Ethernet |
| Management Interface | Ethernet In-Band, Web UI |
| Rack-Mount | Yes, 1U High |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 10 to 90% RH |
| ESD/EMP Protection | Air ± 24KV; Contact ± 24KV |
| Certifications | CE, FCC, IC |
