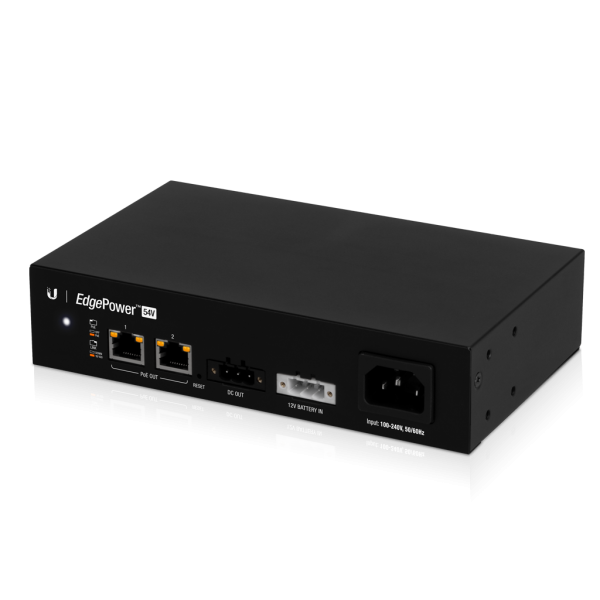

Ubiquiti EdgePower EP-54V-72W
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
-
EU RoHS und REACH Erklärung
- stock: 0
- part no.: 176813
- vendor: Ubiquiti
- mnufacturer no.: EP-54V-72W
- EAN No.: 817882027922
- weight: 3kg
- warranty: 12 months
- Do you have any questions concerning this product?
EdgeMAX uninterruptible power supply.
Reliable and convenient UPS for WISPs
UISP... more
Product information "Ubiquiti EdgePower EP-54V-72W"
EdgeMAX uninterruptible power supply.
Reliable and convenient UPS for WISPs
UISP remote management
Automatic alerts for power outages
Note. Connect to a lead-acid battery only. Using another battery type could be hazardous.
Technical Specifications
EP-24V-72W | |
---|---|
Model | EP-24V-72W |
Dimensions | 192 x 43.7 x 115 mm (7.56 x 1.72 x 4.53") |
Weight | 650 g (1.43 lb) |
Interfaces Networking Management |
(2) 10/100 Mbps RJ45 Ports Ethernet In-Band |
PoE Output | (2) 24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
DC Output | 24V, 3A |
AC Input | 100-240VAC, 50-60 Hz, Universal Input |
Battery Input | DC Terminal Block |
AC Input | AC/DC 72W |
Battery Input | 12VDC Lead Acid Battery* *Battery not included. Connect to a lead-acid battery only. Using another battery type could be hazardous. |
System | 2W |
Output | 72W |
System | Status |
RJ45 Data Ports | PoE; Link/Activity |
ESD/EMP Protection | Air: ± 12 kV, Contact: ± 12 kV |
Operating Temperature | 0 to 40° C (32 to 104° F) |
Operating Humidity | 10 to 90% Noncondensing |
Certifications | CE, FCC, IC |
EP-54V-72W | |
Model | EP-54V-72W |
Dimensions | 115 x 192 x 43.7 mm (4.53 x 7.56 x 1.72") |
Weight | 650 g (1.43 lb) |
Interfaces Networking Management |
2) 10/100 Mbps RJ45 Ports Ethernet In-Band |
PoE Output | (2) 54VDC Passive PoE (Pins 4, 5+; 7, 8-) |
DC Output | 54V, 1.3A |
Power Method AC Input Battery Input |
100-240VAC, 50-60 Hz, Universal Input DC Terminal Block |
Power Supply AC Input Battery Input |
AC/DC 72W 12VDC Lead Acid Battery* *Battery not included. Connect to a lead-acid battery only. Using another battery type could be hazardous. |
Max. Power Consumption System Output |
2W 72W |
LEDs System RJ45 Data Ports |
Status PoE; Link/Activity |
ESD/EMP Protection | Air: ± 12 kV, Contact: ± 12 kV |
Operating Temperature | 0 to 40° C (32 to 104° F) |
Operating Humidity | 10 to 90% Noncondensing |
Certifications | CE, FCC, IC |
EP-54V-150W | |
Model | EP-54V-150W |
Dimensions without Mount Brackets | 299.8 x 286.9 x 42.55 mm (11.89 x 11.3 x 1.68") |
Weight without Mount Brackets | 2.7 kg (5.95 lb) |
Power Method | 100-240VAC/50-60 Hz, Universal Input |
Power Supply Module | 54V, 150W AC/DC Model EP-54V-150W-AC Installed in PSU 1 |
Maximum Power Output PSU | 150W (1 PSU Module) 300W (2 PSU Modules @ 150W Each) |
LEDs Power Ethernet PSU |
System On/Off Management Port Link PSU1+PSU2, PSU1/PSU2 |
Networking Interface | (1) 10/100 RJ45 Ethernet |
Management Interface | Ethernet In-Band, Web UI |
Rack-Mount | Yes, 1U High |
Operating Temperature | 0 to 40° C (32 to 104° F) |
Operating Humidity | 10 to 90% RH |
ESD/EMP Protection | Air ± 24KV; Contact ± 24KV |
Certifications | CE, FCC, IC |
