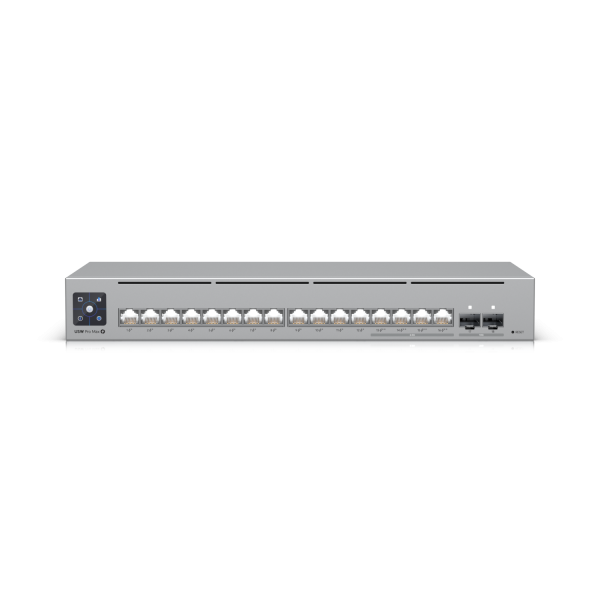

Ubiquiti Switch full managed Layer3 18 Port • 4x 2,5 GbE • 12x GbE • PoE Budget 180W • 4x PoE bt • 12x PoE at • 2x SFP+ • UniFi • USW-Pro-Max-16-PoE
- stock: 0
- part no.: 231139
- vendor: Ubiquiti
- mnufacturer no.: USW-Pro-Max-16-PoE
- EAN No.: 810084694572
- weight: 3.61kg
- warranty: 12 months
- Do you have any questions concerning this product?

A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting... more
Product information "Ubiquiti Switch full managed Layer3 18 Port • 4x 2,5 GbE • 12x GbE • PoE Budget 180W • 4x PoE bt • 12x PoE at • 2x SFP+ • UniFi • USW-Pro-Max-16-PoE"
A 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.
Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(4) 2.5 GbE PoE++ ports
(12) GbE PoE+ ports
(2) 10G SFP+ ports
180W total PoE availability
Versatile desktop, wall, and rack** mounting
Silent, fanless cooling system
*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
**Requires add-on Rack Mount accessory.
Technical Specifications
Mechanical | |
---|---|
Dimensions | 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7") |
Weight | 2.1 kg (4.6 lb) |
Enclosure material | SGCC steel |
Hardware | |
Management interface | Ethernet In-Band |
Networking interface | (12) GbE RJ45 ports (4) 1/2.5 GbE RJ45 ports (2) 10G SFP+ ports |
PoE interface | (12) PoE/PoE+ (Pins 1, 2+; 3, 6-) (4) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
Total non-blocking throughput | 42 Gbps |
Switching capacity | 84 Gbps |
Forwarding rate | 62.496 Mpps |
Power method | DC adapter |
Power supply | 54V, 210W |
Max. power consumption | 30W (Excluding PoE output) |
Total available PoE | 180W |
Max. PoE wattage per port by PSE | PoE: 15.4W PoE+: 30W PoE++: 60W |
Voltage range PoE mode | PoE: 44—57V PoE+/PoE++: 50—57V |
LCM display | (1) 1.3" touchscreen |
Button | Factory reset |
Ambient operating temperature | -5 to 40° C (23 to 104° F) |
Ambient operating humidity | 10 to 90% noncondensing |
Certifications | CE, FCC, IC |
Switching Features | |
Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
Layer 3 features | DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs |
Etherlighting™ | |
Ethernet | Locating Speed/link Native VLAN/network |
SFP+ | Locating Speed/link Native VLAN/network |
Application Requirements | |
UniFi Network | Version 8.1.127 and later |
