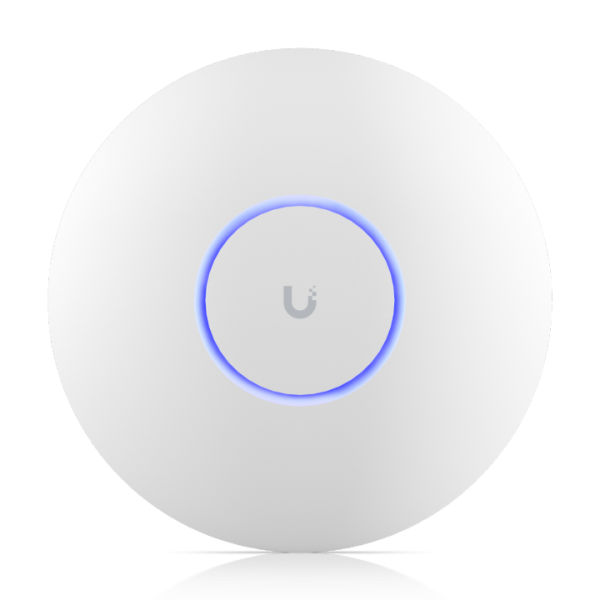

Ubiquiti Wireless AP WIFI7 • BE15000 • 4x4 • Indoor • 2,5 GbE • UniFi • U7-Pro-Max
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 231339
- vendor: Ubiquiti
- mnufacturer no.: U7-Pro-Max
- EAN No.: 8100846955556
- weight: 1.43kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Ceiling-mountable WiFi 7 AP with 6 GHz support, 2.5 GbE uplink and 9.3 Gbps over-the-air speed.... more
Product information "Ubiquiti Wireless AP WIFI7 • BE15000 • 4x4 • Indoor • 2,5 GbE • UniFi • U7-Pro-Max"
Ceiling-mountable WiFi 7 AP with 6 GHz support, 2.5 GbE uplink and 9.3 Gbps over-the-air speed.
WiFi 7 with 6 GHz support
140 m² (1,500 ft²) coverage
¨über 300 angeschlossener Geräte
Power supply via PoE+
2.5 GbE uplink
Technical specifications
| Mechanical | ||
|---|---|---|
| Maße | Ø206 x 46 mm (Ø8.1 x 1.8") | |
| Weight | 680 g (1.5 pounds) | |
| Waste materials | Polycarbonate, metal | |
| Mounting material | Mounting bracket: stainless steel (SUS304) Support plate: galvanised steel (SGCC) |
|
| Hardware | ||
| Network interface | (1) 2.5 GbE RJ45 port | |
| Management interface | Ethernet | |
| Power Method | PoE+ | |
| Power supply | UniFi PoE switch | |
| Supported voltage range | 4457 V DC | |
| Max. Energy consumption | 21W | |
| Max. Transmission power 2.4 GHz 5 GHz 6 GHz |
22 dBm 26 dBm 23 dBm |
|
| MIMO 2.4 GHz 5 GHz 6 GHz |
2 x 2 2 x 2 2 x 2 |
|
| Throughput rate 2.4 GHz 5 GHz 6 GHz |
688 Mbit/s, 2882 Mbit/s, 5765 Mbit/s |
|
| Antenna gain 2.4 GHz 5 GHz 6 GHz |
4 dBi 6 dBi 5.8 dBi |
|
| LEDs | White" Blue | |
| key | Factory settings reset | |
| Montage | Wall/ceiling (included) | |
| Operating temperature | -30 to 60 °C (-22 to 140 °F) | |
| Operating humidity | 5 to 95 % non-condensing | |
| Certifications | CE, FCC, IC | |
| Software | ||
| WLAN standards | 802.11a/b/g/n/ac/ax/be | |
| Security for wireless connections | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) | |
| BSSID | 8 per radio | |
| VLAN | 802.1Q | |
| Advanced QoS | Rate limit per user | |
| Isolation of guest traffic | Supports | |
| Concurrent clients | 300+ | |
| Supported data rates | ||
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s | |
| 802.11b | 1, 2, 5.5, 11 Mbit/s | |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s | |
| 802.11n | 6.5 Mbit/s to 300 Mbit/s (MCS0 MCS15, HT 20/40) | |
| 802.11ac (WiFi 5) | 6.5 Mbit/s to 1.7 Gbit/s (MCS0 MCS9 NSS1/2, VHT 20/40/80/160) | |
| 802.11ax (WiFi 6) | 7.3 Mbit/s to 2.4 Gbit/s (MCS0 MCS11 NSS1/2, HE 20/40/80/160) | |
| 802.11be (WiFi 7) | 7.3 Mbit/s to 5.7 Gbit/s (MCS0 MCS13 NSS1/2, EHT 20/40/80/160/240/320) | |
| Application requirements | ||
| UniFi network | Version 8.0.7 and higher | |
| UniFi operating system | Version 3.2 and higher |
