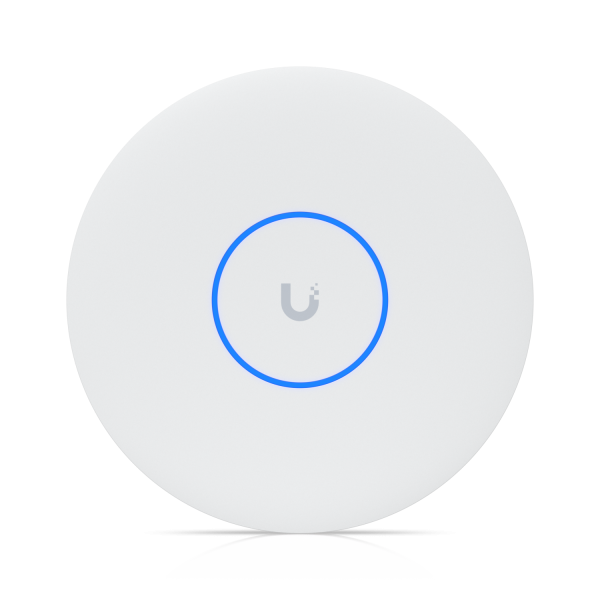

Ubiquiti Wireless AP WIFI7 • BE10700 • 2x2 • Indoor • 10 GbE • UniFi • U7-Pro-XG
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 243092
- vendor: Ubiquiti
- mnufacturer no.: U7-Pro-XG
- EAN No.: 810177160632
- weight: 1.3kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Ceiling-mounted 6-stream WLAN 7 AP with 10/5/2.5/1 GbE support
Highlights:
WiFi 7 with... more
Product information "Ubiquiti Wireless AP WIFI7 • BE10700 • 2x2 • Indoor • 10 GbE • UniFi • U7-Pro-XG"
Ceiling-mounted 6-stream WLAN 7 AP with 10/5/2.5/1 GbE support
Highlights:
- WiFi 7 with 6 GHz support
- 6 spatial streams
- 140 m² (1,500 ft²) coverage
- More than 300 connected devices
- Power supply via PoE+
- 10 GbE uplink
Technical data:
| Mechanical | |
|---|---|
| Maße | Ø206 x 32.5 mm (Ø8.1 x 1.3") |
| Weight | 750 g |
| Favourite material | Polycarbonate, aluminium |
| Mounting material | Stainless steel (SUS304), galvanised steel (SGCC) |
| Hardware | |
| Network interface | (1) 1/2.5/5/10 GbE RJ45 connection |
| Management interface | Ethernet |
| Power method | PoE+ |
| Power supply | UniFi PoE switch |
| Supported voltage range | 42.5–57 V direct current |
| Max. Power consumption | 22W |
| Max. Transmission power 2.4 GHz 5 GHz 6 GHz |
23 dBm 26 dBm 24 dBm |
| MIMO 2.4 GHz 5 GHz 6 GHz |
2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) |
| Max. Data rate 2.4 GHz 5 GHz 6 GHz |
688 Mbit/s (BW40) 4.3 Gbit/s (BW240) 5.7 Gbit/s (BW320) |
| Antenna gain 2.4 GHz 5 GHz 6 GHz |
4 dBi 5 dBi 6 dBi |
| LEDs | White/blue |
| Button | Factory reset |
| Mounting | Wall, ceiling (included) |
| Environmental temperature | -30 to 40 °C (-22 to 104 °F) |
| Humidity during operation | 5 to 95 % non-condensing |
| Certifications | CE, FCC, IC |
| Software | |
| WLAN standards | 802.11a/b/g/n/ac/ax/be (WLAN 6, WLAN 7) |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Rate limitation per user |
| Isolation of guest traffic | Supported |
| Concurrent clients | 300+ |
| Supported data rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s |
| 802.11b | 1, 2, 5.5, 11 Mbit/s |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbit/s |
| 802.11n | 6.5 Mbit/s to 300 Mbit/s (MCS0 – MCS15, HT 20/40) |
| 802.11ac | 6.5 Mbit/s to 1.7 Gbit/s (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11ax (WLAN 6) | 7.3 Mbit/s to 2.4 Gbit/s (MCS0 – MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11be (WLAN 7) | 7.3 Mbit/s to 5.7 Gbit/s (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
