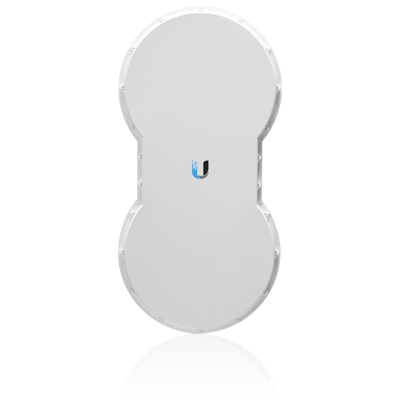

Ubiquiti AirFiber, AF-5U 1Gbps+ Backhaul, 5.7-6.2GHz P2P Richtfunk

Preview: Ubiquiti AirFiber, AF-5U 1Gbps+ Backhaul, 5.7-6.2GHz P2P Richtfunk

product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

Call us Mail us

Due to the holiday "Allerheiligen" your order will not be dispatched until the next working day.

Downloads

data sheet DE

EU RoHS und REACH Erklärung

stock: 0
part no.: 111075
vendor: Ubiquiti
mnufacturer no.: AF-5U EU
EAN No.: 810354022081
weight: 24.5kg
warranty: 12 months
Do you have any questions concerning this product?

Compact, wireless point-to-point high-band bridge with a 1.2+ Gbps throughput rate. 5 GHz,... more

Close menu

Product information "Ubiquiti AirFiber, AF-5U 1Gbps+ Backhaul, 5.7-6.2GHz P2P Richtfunk"

Compact, wireless point-to-point high-band bridge with a 1.2+ Gbps throughput rate.

5 GHz, high-band 100+ km link range

1.2+ Gbps throughput

Separate integrated TX and RX antennas

Integrated GPS sync

1+ Mpps processing

_{Note. This product should be purchased in pairs in order to form links.}

Technical Specifications

Mechanical
Dimensions	938.4 x 468.4 x 281.4 mm (36.94 x 18.44 x 11.08"
Weight	16 kg (35.27 lb)
Mounting	Pole mount kit (Included)
Wind Loading	863 N @ 200 km/h (194 lbf @ 125 mph)
Wind Survivability	200 km/h (125 mph)
Hardware
Networking interface	(1) GbE RJ45 port (1) 10/100 MbE RJ45 port
Auxiliary Port	(1) RJ-12, alignment tone port
Power method	Passive PoE
Power supply	50V, 1.2A PoE GigE adapter (Included)
Supported voltage range	42—58V DC
Max. power consumption	40 W
Operating temperature	-40 to 55°C (-40 to 131° F)
Certifications	CE, FCC, IC
System
Max. throughput	1.2+ Gbps
Max. range*	100+ km *Dependent on regulatory region.
Packets per second	1+ million
Encryption	128-Bit AES
Uplink/Downlink Ratio	50% Fixed
Radio Frame Synchronization	GPS
RF
Operating frequency	5725 - 5850 MHz (FCC 15.247, IC RSS-210) 5725 - 5875 MHz (ETSI EN 302 502) 5725 - 6200 MHz (Other Regions)
GPS	GPS Clock Synchronization
EIRP	~50 dBm *Dependent on regulatory region and frequency band.
Frequency accuracy	±2.5 ppm without GPS synchronization ±0.2 ppm with GPS synchronization
Channel bandwidth	10/20/30/40/50 MHz
Modulation	1024QAM MIMO 256QAM MIMO 64QAM MIMO 16QAM MIMO QPSK MIMO ½ Rate QPSK xRT ¼ Rate QPSK xRT
Gain TX RX	23 dBi 23 dBi
Beamwidth	6°
Front-to-back ratio	70 dB
Polarization	Dual-slant
Cross-polarity isolation	> 28 dB
LEDs
System	(12) Status LEDs: Data port pink/activity Data port speed Management port link/activity Management port speed GPS synchronization Master/slave Link status Modulation mode 0.25x to 4x, 6x, 8x, 10x (unlabelled), overload Remote and local displays (Calibrated signal strength)
