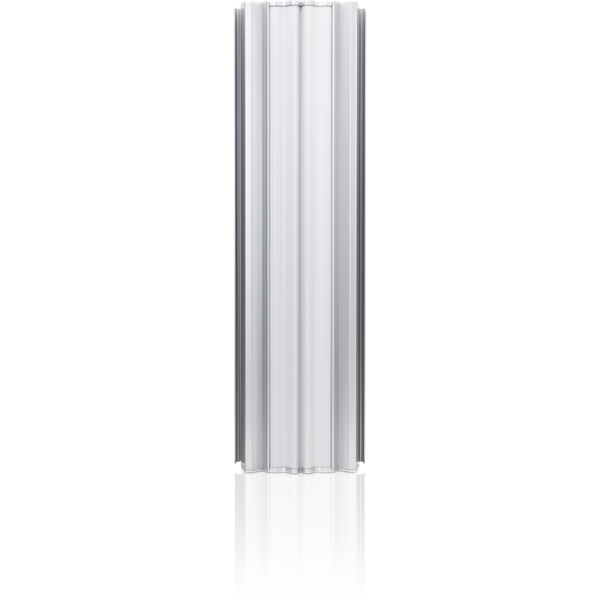

Ubiquiti airMAX AC 5 GHz, 22 dBi, 45º Sector
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 114260
- vendor: Ubiquiti
- mnufacturer no.: AM-5AC22-45
- EAN No.: 810354021404
- weight: 8.05kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
5 GHz, 45º, 22 dBi BaseStation sector antenna for Point-to-MultiPoint (PtMP) networks.
2x2... more
Product information "Ubiquiti airMAX AC 5 GHz, 22 dBi, 45º Sector"
5 GHz, 45º, 22 dBi BaseStation sector antenna for Point-to-MultiPoint (PtMP) networks.
2x2 dual-polarity performance
Robust mechanical design for outdoor application use
Compatible with Rocket Prism 5AC
Technical Specifications
| AM-5AC22-45 | |
|---|---|
| Dimensions | 750 x 215 x 94 mm (29.5 x 8.5 x 3.7") |
| Weight | 6 kg (13.2 lb) |
| Frequency Range | 5.10 - 5.85 GHz |
| Gain | 22 dBi |
| HPOL Beamwidth | 45° (6 dBi) |
| VPOL Beamwidth | 45° (6 dBi) |
| Electrical Beamwidth | 4° |
| Electrical Downtilt | 2° |
| Max. VSWR | 1.5:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 347 N @ 200 km/h (78 lbf @ 125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 30 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
