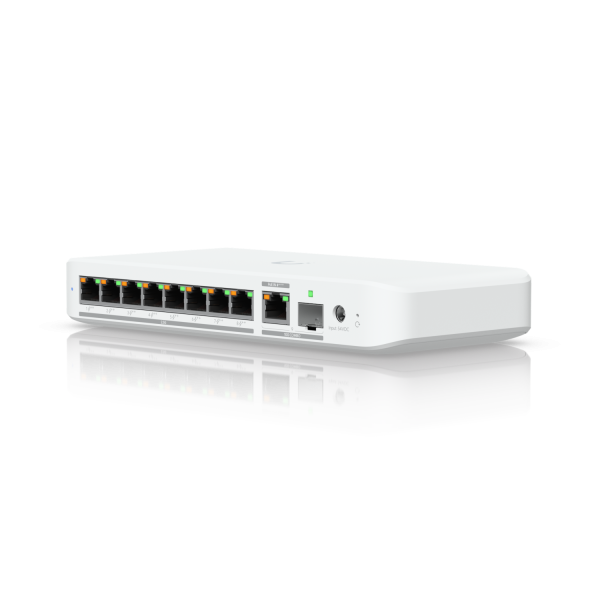

Ubiquiti Switch smart managed Layer2 9 Port • 8x 2,5 GbE PoE+ • 1x 10 GbE PoE bt In • Desktop • Lüfterlos • UniFi • USW-Flex-2.5G-8-PoE
product pictures similar, may differ from the product description!
Due to the holiday "Ostermontag" your order will not be dispatched until the next working day.
- stock: 0
- part no.: 239780
- vendor: Ubiquiti
- mnufacturer no.: USW-Flex-2.5G-8-PoE
- weight: 0.567kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Flexible 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be... more
Product information "Ubiquiti Switch smart managed Layer2 9 Port • 8x 2,5 GbE PoE+ • 1x 10 GbE PoE bt In • Desktop • Lüfterlos • UniFi • USW-Flex-2.5G-8-PoE"
Flexible 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered by PoE+++ or an AC power supply*.
Highlights:
- (8) 2.5 GbE PoE++ output ports
- (1) 10 GbE PoE+++ input port for power/SFP+ port combination
- 57 W PoE availability with PoE+++ input
- 37 W PoE availability with PoE++ input
- 12 W PoE availability with PoE+ input
- 196 W PoE capability with optional AC power supply*
*Power supply available separately
Technical data:
| Mechanical | |
|---|---|
| Dimensions | 212.9 x 99.4 x 33.5 mm (8.4 x 3.9 x 1.3 inches) |
| Weight | 567 g (20 oz) |
| Favourite material | Polycarbonate |
| Mounting | Wall mounting possible (kit included in scope of delivery) DIN rail mounting possible (available separately) |
| Hardware | |
| Management interface | Ethernet in-band |
| Network interface | (8) 2.5/1 GbE RJ45 ports (1) 10G SFP+ or 10/5/2.5/1 GbE combo port* If only one is active, GbE can be supplied with power and SFP+ can be used for data |
| PoE interface | (8) 60 W PoE++ (pair A 1, 2+; 3, 6-) (pair B 4, 5+; 7, 8-) |
| Total non-blocking throughput | 30 Gbit/s |
| Switching performance | 60 Gbit/s |
| Forwarding tariff | 44.64 Mpps |
| Performance method | (1) Power supply unit, 54 V DC, 3.9 A (not included in the scope of delivery) (1) PoE+++ (pairA 1, 2+; 3, 6-)(pairB 4, 5+; 7, 8-) |
| Power supply | External AC/DC adapter UniFi PoE switch |
| Supported voltage range | AC/DC input: 54 V DC (DC socket) PoE input: 5057 V DC |
| Max. Power consumption | PoE input: 14 W (without PoE output) AC input: 17 W (without PoE output) |
| Total available PoE | PoE+++ input: 57 W PoE++ input: 37 W PoE+ input: 12 W 210 W AC adapter input: 196 W |
| Max. PoE power per port through PSE | PoE: 15.4 W PoE+: 30 W PoE++: 60 W |
| PoE mode voltage range | PoE: 4457 V PoE+/PoE++: 5057 V |
| Button | Factory reset |
| Operating ambient temperature | -20 to 45 °C (-4 to 113 °F) |
| Humidity during operation | 10 to 90 % non-condensing |
| Certifications | CE, FCC, IC |
| Switching functions | |
| Layer 2 functions | STP / RSTP with prioritisation and deactivation at port level Storm control Multicast/broadcast rate limiting flow control Jumbo -frames Egress rate limiting Proprietary loop protection Port isolation Port mirroring |
| LEDs | |
| System | Blue/white;: Power supply. Flashing white: Boot up is running. Flashing blue: Firmware update. Solid white: Factory settings; device is waiting for acceptance. Solid blue: Device has been accepted. |
| Ethernet | Link/Activity PoE input/output |
| SFP+ | Link/Activity |
| Application requirements | |
| UniFi network | Version 9.0.108 and higher |
