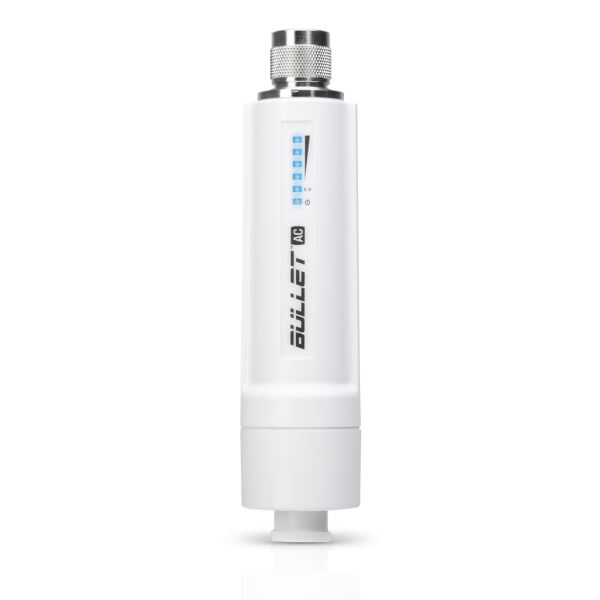

Ubiquiti Bullet AC, Dual-Band, AC, B-DB-AC
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 148952
- vendor: Ubiquiti
- mnufacturer no.: B-DB-AC
- EAN No.: 817882021319
- weight: 0.179kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Portable, dual-band WiFi radio powered with Gigabit PoE and compatible with the UISP... more
Product information "Ubiquiti Bullet AC, Dual-Band, AC, B-DB-AC"
Portable, dual-band WiFi radio powered with Gigabit PoE and compatible with the UISP application.
Covers both 2.4 and 5 GHz bands
300+ Mbps throughput*
Plug-and-play integration with airMAX antennas
*Only at 5 GHz frequency band.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 190 x 46 mm (7.48 x 1.81") |
| Weight | 116 g (4.09 oz) |
| Enclosure manterial | Polycarbonate |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | 24V passive PoE (pairs 4, 5+; 7, 8 return) |
| Power supply | 24V DC, 0.3A (minimum) |
| Max. power consumption | 7W |
| Output power | 22 dBm |
| Throughput 2.4 GHz 5 GHz |
160+ Mbps 300+ Mbps |
| ESD/EMP protection | Air/contact ± 24 kV |
| Antenna connector | N-type connector |
| LEDs | Power, Ethernet, ?(4) signal strength |
| Shock and Vibration | ETSI300-019-1.4 |
| Operating temperature | -40 to 70° C (-40 to 158° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Operating Frequency (MHz) | |
| US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
2400 - 2483.5 MHz 5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5725 MHz 5725 - 5850 MHz |
| Worldwide | 2400 - 2483.5 MHz 5150 - 5875 MHz |
