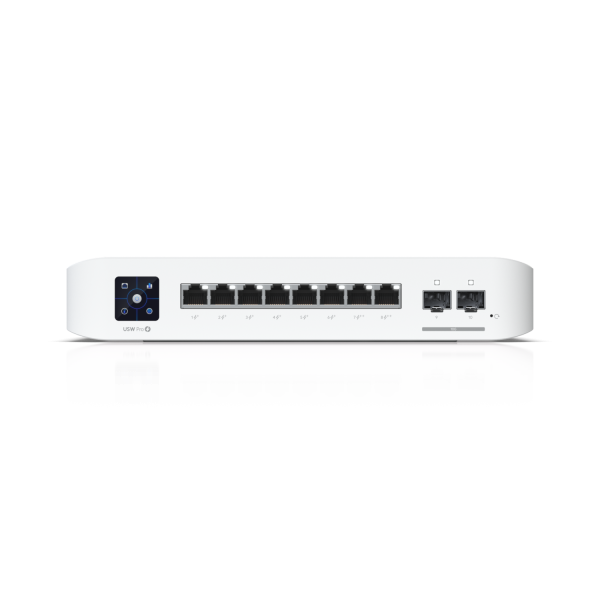

Ubiquiti UniFi Switch Pro / 8 Port / 120W / PoE++ / 2 SFP+ Ports / USW-Pro-8-POE
- stock: 0
- part no.: 221629
- vendor: Ubiquiti
- mnufacturer no.: USW-Pro-8-PoE
- EAN No.: 810084692691
- weight: 2.1kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
![](https://shop.allnet.dk/themes/Frontend/ALLNET/frontend/_public/src/img/download_icon_datasheet.png)
![](https://shop.allnet.dk/themes/Frontend/ALLNET/frontend/_public/src/img/download_icon_rohs.png)
An 8-port, Layer 3 switch with PoE+ and PoE++ output.
(6) GbE PoE+ ports
(2) GbE PoE++... more
Product information "Ubiquiti UniFi Switch Pro / 8 Port / 120W / PoE++ / 2 SFP+ Ports / USW-Pro-8-POE"
An 8-port, Layer 3 switch with PoE+ and PoE++ output.
(6) GbE PoE+ ports
(2) GbE PoE++ ports
(2) 10G SFP+ ports
120W total PoE availability
Note: Managed with UniFi Network Application version 7.5.176 and later.
Technical Specifications
Mechanical | |
---|---|
Dimensions | 200 x 248 x 44 mm (7.9 x 9.8 x 1.7") |
Weight | 2.1 kg (4.6 lb) |
Enclosure materials | Plastic, metal |
Mount material | Plastic |
Hardware | |
Management interface | Ethernet In-Band |
Networking interface | (8) GbE RJ45 ports (2) 10 Gbps SFP+ ports |
PoE interface | (6) PoE/PoE+ (Pins 1, 2+; 3, 6-) (2) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
Total non-blocking throughput | 28 Gbps |
Switching capacity | 56 Gbps |
Power method | Universal input, 100—240V AC, max. 2A |
Power supply | AC/DC, internal |
Supported voltage range | 100—240V AC |
Max. power consumption | 30W (Excluding PoE output) |
Total available PoE | 120W |
Max. PoE wattage per port by PSE | PoE: 15W PoE+: 30W PoE++: 60W |
Voltage range PoE mode | PoE: 44—57V PoE+: 50—57V PoE++: 50—57V |
LCM display | (1) 1.3" touchscreen |
LEDs | RJ45 ports: link/activity |
Button | Factory reset |
Operating temperature | -5 to 45° C (23 to 113° F) |
Operating humidity | 10 to 90% noncondensing |
Certifications | CE, FCC, IC |
Application Requirements | |
UniFi Network | Version 7.5.176 and later |
