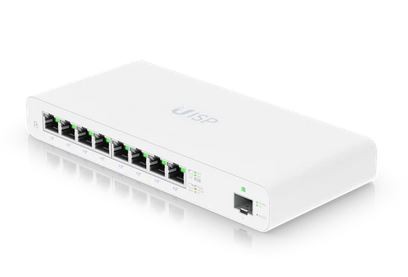

Ubiquiti UISP-S 8x Gigabit PoE ISP Router, 1x SFP
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 211962
- vendor: Ubiquiti
- mnufacturer no.: UISP-S
- EAN No.: 810010076595
- weight: 1kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Eight-port, Layer 2, Gigabit PoE switch designed for MicroPoP applications and building... more
Product information "Ubiquiti UISP-S 8x Gigabit PoE ISP Router, 1x SFP"
Eight-port, Layer 2, Gigabit PoE switch designed for MicroPoP applications and building secure, high-performance networks.
(8) GbE RJ45 ports with 27V passive PoE output
(1) SFP port
110W (27V) total PoE availability*, 15W/port (2-pair) / 30W/port (4-pair)
Port isolation, speed limiting, and DHCP snooping functionality
Standalone management through local web interface** and UISP Application integration
*When powered with the included AC/DC adapter.
**Available for switches updated to version 1.6.0 and later.
Can be staged outdoors when enclosed in the UISP Box (sold separately).
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 210.4 x 95 x 29 mm (8.3 x 3.7 x 1.1") |
| Weight | 610 g (1.3 lb) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Total non-blocking throughput | 9 Gbps |
| Switching capacity | 18 Gbps |
| Forwarding rate | 13.392 Mpps |
| Networking interface | (8) GbE RJ45 ports (1) 1G SFP port |
| Management interface | Ethernet In-band Bluetooth BLE |
| Power method | External AC/DC adapter |
| Power supply | 27V DC, 4.4A power adapter (included) |
| Supported voltage range | 24—28V DC |
| Max. power consumption | 8W (Excluding PoE output) |
| ESD/EMP protection | Air: ± 15kV, contact: ± 8kV |
| Operating temperature | -10 to 50° C (14 to 122° F) |
| Operating humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC |
| PoE | |
| PoE interface | (8) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-) |
| Total available PoE | 110W |
| Max. passive PoE wattage per port | 30W/27V DC |
| Passive PoE voltage range | 27V DC |
| LEDs | |
| RJ45 data ports | PoE Speed/link/activity |
| SFP data ports | Link/activity |
| Software | |
| Management application | UISP: Version 1.4.0 and later |
