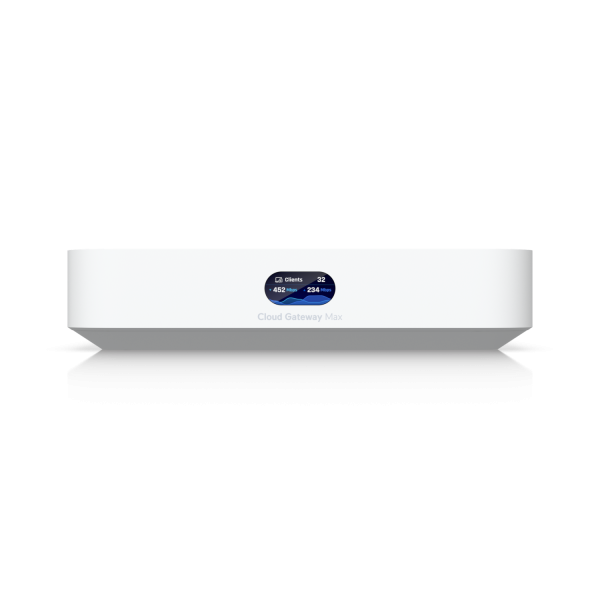

Ubiquiti UniFi Cloud Gateway Max • 1x 1/2,5 GbE RJ45-Port WAN • 4x GbE RJ45-Ports LAN • 1 Gbps routing IDS/IPS • UCG-MAX
- stock: 0
- part no.: 232302
- vendor: Ubiquiti
- mnufacturer no.: UCG-Max
- weight: 0.519kg
- warranty: 12 months
- Do you have any questions concerning this product?
![](https://shop.allnet.dk/themes/Frontend/ALLNET/frontend/_public/src/img/download_icon_rohs.png)
Compact cloud gateway with support for over 30 UniFi devices/over 300 clients, 1 Gbit/s IPS... more
Product information "Ubiquiti UniFi Cloud Gateway Max • 1x 1/2,5 GbE RJ45-Port WAN • 4x GbE RJ45-Ports LAN • 1 Gbps routing IDS/IPS • UCG-MAX"
Compact cloud gateway with support for over 30 UniFi devices/over 300 clients, 1 Gbit/s IPS routing and multi-WAN load balancing.
Führt UniFi Network for full-stack network management
Manages over 30 UniFi network devices and over 300 clients
1 Gbit/s routing with IDS/IPS
Multi-WAN load balancing
0.96" LCM status display
Power supply via USB-C (adapter included)
Technical specifications
Mechanical | |
---|---|
Maße | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2 inches) |
Weight | 520 g |
Walking material | Polycarbonate |
Hardware | |
Processor | Quad-core ARM® Cortex®-A53 with 1.5 GHz |
System memory | 3 GB DDR4 |
Integrated memory | 16 GB eMMC |
Management interface | Ethernet Bluetooth |
Network interface | LAN: (4) GbE RJ45 ports WAN: (1) 1/2.5 GbE RJ45 port |
IDS/IPS throughput | 1 Gbit/s* *Measured with iPerf3 in a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation. |
Performance method | USB type C (5 V DC/3 A) |
Supported voltage range | 100–240 V alternating current |
Max. Power consumption | 6.2 W |
LCM display | 0.96" Status display |
Button | Factory settings reset |
Operating ambient temperature | -10 to 40 °C (14 to 104 °F) |
Humidity during operation | 5 to 95 % non-condensing |
Certifications | CE, FCC, IC |
Gateway functions | |
Performance | Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application-, domain- and country-based QoS Application and device type identification Additional internet failover with LTE backup Reporting on internet quality and performance |
Next generation security | Application-based firewall rules Signature-based IPS/IDS threat detection Content, country, domain and advert filtering VLAN/subnet-based traffic segmentation Complete stateful firewall |
Advanced network functions | Licence-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN Teleport and Identity VPN with one click Policy-based WAN and VPN routing DHCP relay Customisable DHCP server IGMP proxy IPv6 ISP support |
LEDs | |
Ethernet | Grün: Link/Activity |
Application requirements | |
App | UniFi iOS™: Version 10.12.0 and higher UniFi Android™: Version 10.11.2 and higher |
