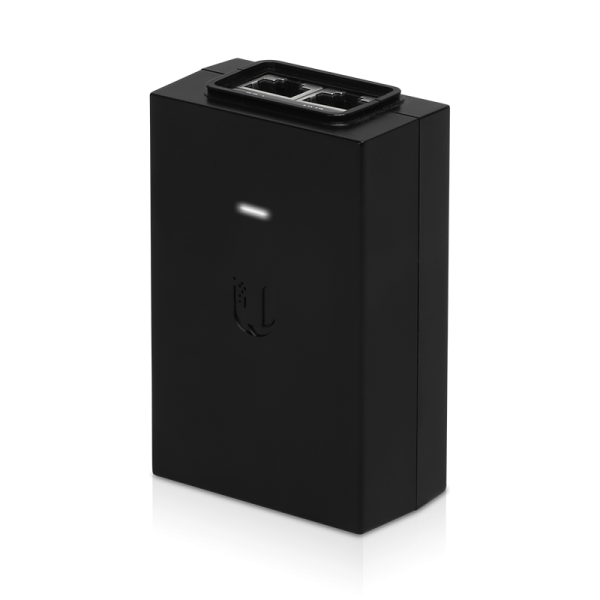

Ubiquiti POE Injector, 24V, 24W, Gigabit Port

Ubiquiti POE Injector, 24V, 24W, Gigabit Port
product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Ubiquiti 24 V DC PoE Adapters providing a variety of features to help protect your PoE... more
Product information "Ubiquiti POE Injector, 24V, 24W, Gigabit Port"

Ubiquiti 24 V DC PoE Adapters providing a variety of features to help protect your PoE devices.

Surge and clamping protection

Maximum surge discharge

Peak pulse current

AC cable with earth ground

Technical Specifications

POE-24-7W-G-WH (Low-Power)
Dimensions 72 x 45 x 33 mm (2.84 x 1.75 x 1.33")
Weight 72.1g (2.54 oz)
Output Voltage 24VDC @ 0.3A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability Yes
Reset Button Yes
Rated Voltage 100-240VAC @ 50/60Hz
Input Current 0.3A @ 120VAC, 0.2A @240VAC
Inrush Current <40A Peak @ 120VAC, <70A Peak @ 230VAC
Efficiency 80+%
Output Ripple 1% Max.
Switching Frequency 65 kHz
Line Regulation ≤ 3%
Load Regulation ≤ 5%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering
Operating Temperature 0 to 40°C (32 to 104°F)
Storage Temperature -30 to 70°C (-22 to 158°F)
Operating Humidity 35 to 95% Non-Condensing
AC Connector IEC-320 C6
Data IN / PoE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 μs) Power
Peak Pulse Current 36A (10/1000 μs) Data
Shunt Capacitance <5 pf data
Response Time <1 ns
Certifications CE, FCC, IC, UL
POE-24-12W-G (Mid-Power)
Dimensions 87 x 44 x 29 mm (3.43 x 1.73 x 1.14")
Weight 99.4 g (3.51 oz)
Output Voltage 24VDC @ 0.5A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability Yes
Reset Button Yes
Rated Voltage 100-240VAC @ 50/60Hz
Input Current 0.3A @ 120VAC, 0.2A @ 240VAC
Inrush Current <30A Peak @ 120VAC, <60A Peak @ 230VAC
Efficiency 75+%
Output Ripple 1% Max.
Switching Frequency 50 kHz
Line Regulation ≤ 3%
Load Regulation ≤ 5%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering -
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature -30 to 70°C (-22 to 158° F)
Operating Humidity 35 to 95% Noncondensing
AC Connector IEC-320 C6
Data IN / PoE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 μs) Power
Peak Pulse Current 36A (10/1000 μs) Data
Shunt Capacitance <5 pF data
Response Time <1 ns
Certifications CE, FCC, IC, UL
POE-24-24W-G (Hi-Power)
Dimensions 88 x 57 x 33 mm (3.47 x 2.24 x 1.30")
Weight 158.5 g (5.59 oz)
Output Voltage 24VDC @ 1.0A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability Yes
Reset Button Yes
Rated Voltage 100-240VAC @ 50/60Hz
Input Current 0.6A @ 120VAC, 0.4A @ 240VAC
Inrush Current <60A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency 80+%
Output Ripple 1% Max.
Switching Frequency 65 kHz
Line Regulation ≤ 3%
Load Regulation ≤ 5%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering -
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature -30 to 70°C (-22 to 158° F)
Operating Humidity 35 to 95% Noncondensing
AC Connector IEC-320 C6
Data IN / PoE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 μs) Power
Peak Pulse Current 36A (10/1000 μs) Data
Shunt Capacitance <5 pF data
Response Time <1 ns
Certifications CE, FCC, IC, UL
