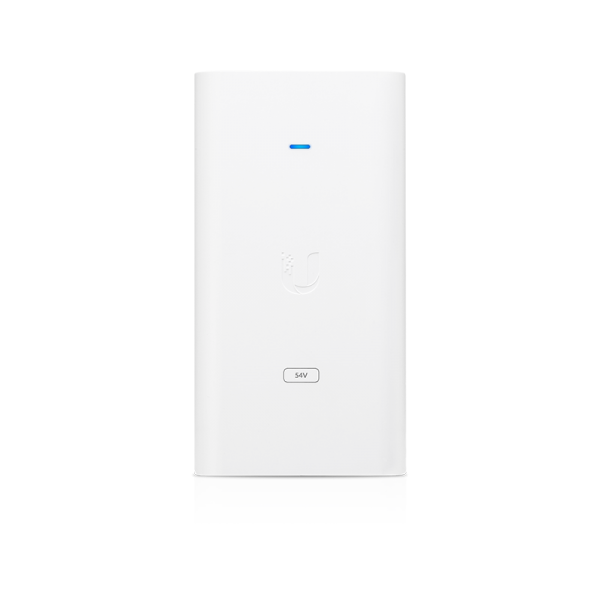

Ubiquiti POE Adapter, EdgePoint, POE-54V-80W
product pictures similar, may differ from the product description!
Due to the holiday "1. Weihnachtstag" your order will not be dispatched until the next working day.
- stock: 0
- part no.: 127662
- vendor: Ubiquiti
- mnufacturer no.: POE-54V-80W
- EAN No.: 0810354024597
- weight: 0.472kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices.... more
Product information "Ubiquiti POE Adapter, EdgePoint, POE-54V-80W "
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices.
Surge and clamping protection
Maximum surge discharge
Peak pulse current
AC cable with earth ground
Technical Specifications
| Specifications | |
|---|---|
| Model | POE-54V-80W |
| Dimensions | 123 x 65 x 34 mm (4.84 _ 2.56 _ 1.34”) |
| Weight | 299 g (10.55 oz) |
| Output Voltage | 54VDC @ 1.5A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | No |
| Reset Button | No |
| Rated Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 0.8A @ 120VAC, 0.4A @ 240VAC |
| Inrush Current | <80A Peak @ 120VAC, <120A Peak @ 230VAC |
| Efficiency | 87+% |
| Output Ripple | 1% Max. |
| Switching Frequency | 100 kHz Max. |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 2-Pair Powering | – |
| 4-Pair Powering | Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-) |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Operating Humidity | 35 to 95% Noncondensing |
| AC Connector | IEC-320 C6 |
| Data IN / PoE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 _s) Power |
| Peak Pulse Current | 36A (10/1000 _s) Data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Certifications | CE, FCC, IC, UL |
