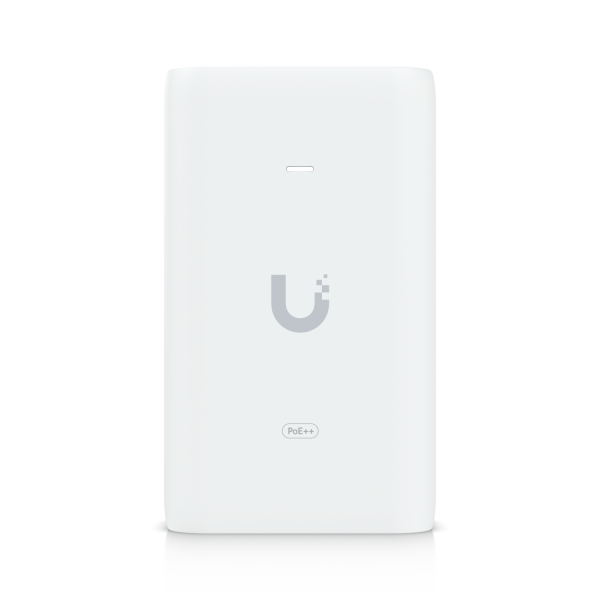

Ubiquiti PoE Injector • PoE++ • 60W • GbE • U-PoE++

Ubiquiti PoE Injector • PoE++ • 60W • GbE • U-PoE++
Ubiquiti PoE Injector • PoE++ • 60W • GbE • U-PoE++
Ubiquiti PoE Injector • PoE++ • 60W • GbE • U-PoE++
Ubiquiti PoE Injector • PoE++ • 60W • GbE • U-PoE++
Ubiquiti PoE Injector • PoE++ • 60W • GbE • U-PoE++
product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

An adapter that can power UniFi PoE++ devices, reduce dependence on the PoE switch power supply... more
Product information "Ubiquiti PoE Injector • PoE++ • 60W • GbE • U-PoE++"
An adapter that can power UniFi PoE++ devices, reduce dependence on the PoE switch power supply and provide a Gigabit LAN connection.

Highlights:

  • Delivers up to 60 W PoE++
  • Overvoltage, pulse peak and overcurrent protection
  • Includes RJ45 data input, AC cable with earthing and PoE++ output
  • LED indicator for status monitoring

Technical data:

Dimensions 106 x 63 x 34 mm (4.2 x 2.5 x 1.3 inches)
Weight 210 g
Output voltage 48 V DC at 1.25 A
LAN activity indicator NO
Gigabit LAN connection Yes
Remote reset function NO
Reset button NO
Nominal voltage 100240 V alternating current at 50/60 Hz
Input current 1.3 A with 120 V alternating current,
0.75 A with 230 V alternating current
Inrush current <100 A peak at 120 V AC
<200 A peak at 230 V AC
Efficiency 85+ %
Output ripple 1% max
Switching frequency 65 kHz
Line control = 1 %
Load control = 3 %
2-pair power supply NO
4-pair power supply Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
AC connection IEC-320 C6
Data input/PoE RJ45 shielded socket
&overvoltage protection Difference and common mode
Clamp protection 11 V data, 60 V current
Max. Surge discharge 1500A (8/20 µs) power
Peak pulse current 36A (10/1000 µs) data
Shunt capacitance <5 pF data
Response time <1 ns
Power method Universal AC input, 100240 V AC, 50/60 Hz
Power supply Alternating current/direct current
Supported voltage range 100240 V alternating current
Max. PoE+ power per port through PSE 60 W
Operating ambient temperature 0 to 40 °C (32 to 104 °F)
Storage temperature -30 to 70 °C (-22 to 158 °F)
Humidity during operation 10 to 95 % non-condensing
Certifications CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS

Produktmerkmale:

Einsatzbereich Display: Indoor
PoE Leistung: 15,4
