Powerfully compact UniFi Cloud Gateway and WiFi 6 access point that runs UniFi Network.... more
Product information "Ubiquiti UniFi Cloud Gateway / 1 WAN / 1 LAN / WiFi 6 / UX"

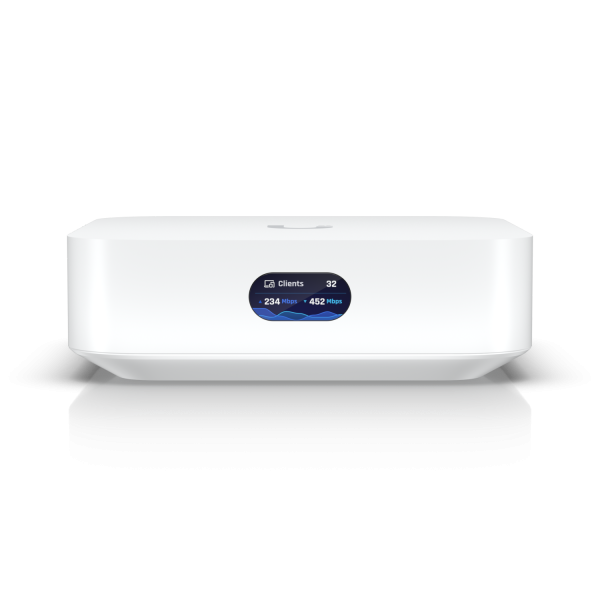

Powerfully compact UniFi Cloud Gateway and WiFi 6 access point that runs UniFi Network. Powers an entire network or simply meshes as an access point.

Built-in WiFi6 (2x2 MIMO)

140 m² (1,500 ft²) single-unit coverage

60+ connected WiFi devices

(1) GbE RJ45 WAN port

(1) GbE RJ45 LAN port to extend network

0.96" LCM status display

Manages up to four additional UniFi Network devices when operated as a gateway

Managed with UniFi Network 8.0.7 and later

Technical Specifications

Mechanical
Dimensions 98 x 98 x 30 mm (3.6 x 3.6 x 1.2")
Weight 302 g (10.7 oz)
Enclosure material Polycarbonate
Hardware
Networking interface (1) GbE RJ45 WAN port
(1) GbE RJ45 LAN port
Management interface Ethernet
Bluetooth
Power method USB type C (5V DC/3A)
Max. power consumption 10W
Max. WiFi TX power
2.4 GHz
5 GHz

22 dBm
25 dBm
MIMO
2.4 GHz
5 GHz

2 x 2 (DL/UL MU-MIMO)
2 x 2 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz
5 GHz

573.5 Mbps
2.4 Gbps
Antenna gain
2.4 GHz
5 GHz

4 dBi
5.15 dBi
Antennas (2) Internal 2.4G/5G WiFi dual-band antenna
(1) Internal 2.4G single-band BT antenna
LCM display 0.96" status display
Button Factory reset
Operating temperature -10 to 45° C (14 to 113° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 60+
Zero wait DFS Yes
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
Application Requirements
UniFi Network Version 8.0.7 and later
