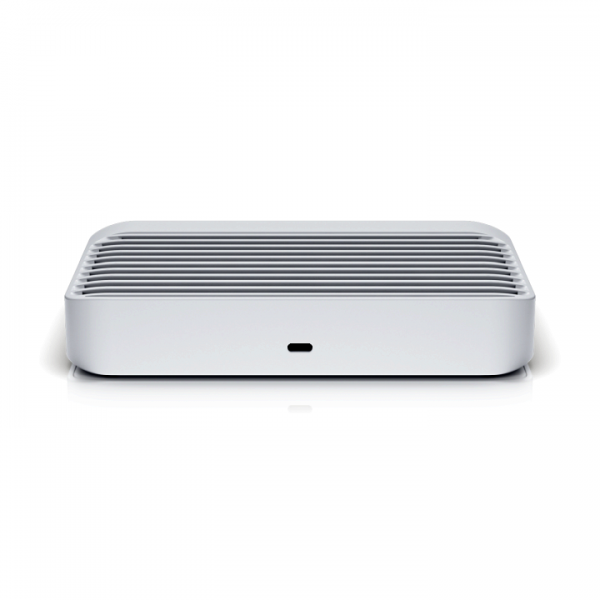

Ubiquiti UniFi Switch Flex XG / 4 Port RJ45 / 10GbE / 1 PoE-In / USW-Flex-XG
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 198381
- vendor: Ubiquiti
- mnufacturer no.: USW-Flex-XG
- EAN No.: 8100100758640
- weight: 1.2kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
A compact, 5-port, Layer 2 switch that supports 10 GbE speeds and can be powered with PoE or a... more
Product information "Ubiquiti UniFi Switch Flex XG / 4 Port RJ45 / 10GbE / 1 PoE-In / USW-Flex-XG"
A compact, 5-port, Layer 2 switch that supports 10 GbE speeds and can be powered with PoE or a 5V USB-C adapter.
(4) 10 GbE ports
(1) GbE PoE+ input port for power
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 135 x 185 x 32 mm (5.3 x 7.3 x 1.3") |
| Weight | 1.2 kg (2.6 lb) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (1) GbE, PoE+ RJ45 port (4) 10 GbE RJ45 ports |
| Total non-blocking throughput | 41 Gbps |
| Switching capacity | 82 Gbps |
| Forwarding rate | 61.012 Mpps |
| Power method | (1) PoE+, 50—57V DC, 25W (1) USB Type-C, 5V DC, 5A |
| Power supply | PoE+ (Pins 1, 2+/3, 6- or 4, 5+/7, 8-) AC/DC power adapter, 5V DC, 5A, 1.5 m cord (Included) |
| Supported voltage range | 90—264V AC (Adapter) |
| Max. power consumption | 25W |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| Button | Factory reset |
| Operating temperature | -5 to 45° C (23 to 113° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | Speed/link/activity |
| Application Requirements | |
| UniFi Network | Version 6.1.67 and later |
