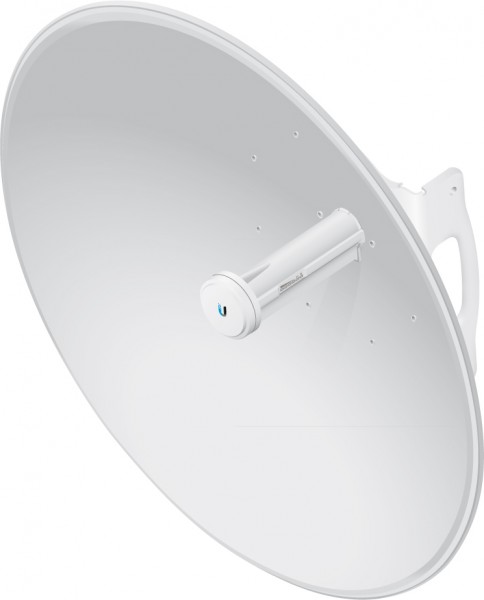

Ubiquiti airMAX PowerBeam 5AC 620

Ubiquiti airMAX PowerBeam 5AC 620
product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

Call us Mail us
Description Accessories 4
Description
5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate. 5 GHz, 25+ km link range... more
Close menu
Product information "Ubiquiti airMAX PowerBeam 5AC 620"

5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate.

5 GHz, 25+ km link range

450+ Mbps throughput

Improved mounting

Dedicated spectral analysis radio

Dedicated WiFi management radio

Note. This product should be purchased in pairs in order to form links.

Technical Specifications

Mechanical
Dimensions 620 x 620 x 386 mm (24.4 x 24.4 x 15.2")
Weight 6.4 kg (14.1 lbs)
Enclosure material Outdoor UV-Stabilized Plastic
Mounting Pole mount kit (Included)
Wind loading Without radome: 1510 N at 200 km/h (340 lbf at 125 mph)
With radome: 1830 N at 200 km/h (411 lbf at 125 mph)
Wind survivability 200 km/h (125 mph)
Hardware
Networking interface (1) GbE RJ45 port
Power method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power supply 24V, 0.5A Gigabit PoE
Max. power consumption 8.5W
Supported voltage range 20-26V DC
ESD/EMP protection Air/contact: ± 24 kV
LEDs (1) Power, (1) LAN, (4) WLAN
Signal strength LEDs Software-adjustable to correspond to custom RSSI levels
RoHS compliance Yes
Salt fog test IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G method 509.5
Vibration test IEC 68-2-6
Temperature shock test IEC 68-2-14
UV test IEC 68-2-5 at 40° C (104° F)
Equivalent: ETS 300 019-1-4
Wind-driven rain test ETS 300 019-1-4
Equivalent: MIL-STD-810 G method 506.5
Operating temperature -40 to 70° C (-40 to 158° F)
Operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE
System
Gain 29 dBi
Max. VSWR 1.6:1
Channel sizes PtP Mode: 10/20/30/40/50/60/80 MHz
PtMP Mode: 10/20/30/40 MHz
Polarization Dual linear
Operating Frequency (Mhz)
Worldwide 5150 - 5875 MHz
USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
5150 – 5250 MHz
5250 – 5350 MHz
5470 – 5725 MHz
5725 – 5850 MHz
