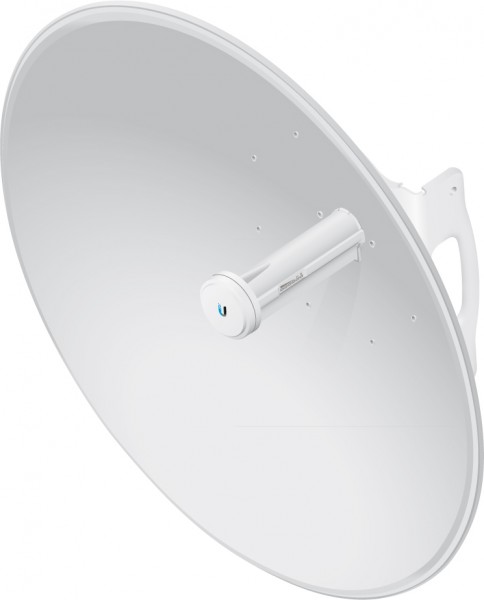

Ubiquiti airMAX PowerBeam 5AC 620
![Ubiquiti airMAX PowerBeam 5AC 620](https://shop.allnet.dk/media/image/c0/10/1f/AIMGFD56D1C500_600x600.jpg)
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 118553
- vendor: Ubiquiti
- mnufacturer no.: PBE-5AC-620
- EAN No.: 810354022593
- weight: 10.31kg
- Do you have any questions concerning this product?
Downloads
![](https://shop.allnet.dk/themes/Frontend/ALLNET/frontend/_public/src/img/download_icon_datasheet.png)
![](https://shop.allnet.dk/themes/Frontend/ALLNET/frontend/_public/src/img/download_icon_rohs.png)
5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate.
5 GHz, 25+ km link range... more
Product information "Ubiquiti airMAX PowerBeam 5AC 620"
5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate.
5 GHz, 25+ km link range
450+ Mbps throughput
Improved mounting
Dedicated spectral analysis radio
Dedicated WiFi management radio
Note. This product should be purchased in pairs in order to form links.
Technical Specifications
Mechanical | |
---|---|
Dimensions | 620 x 620 x 386 mm (24.4 x 24.4 x 15.2") |
Weight | 6.4 kg (14.1 lbs) |
Enclosure material | Outdoor UV-Stabilized Plastic |
Mounting | Pole mount kit (Included) |
Wind loading | Without radome: 1510 N at 200 km/h (340 lbf at 125 mph) With radome: 1830 N at 200 km/h (411 lbf at 125 mph) |
Wind survivability | 200 km/h (125 mph) |
Hardware | |
Networking interface | (1) GbE RJ45 port |
Power method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
Power supply | 24V, 0.5A Gigabit PoE |
Max. power consumption | 8.5W |
Supported voltage range | 20-26V DC |
ESD/EMP protection | Air/contact: ± 24 kV |
LEDs | (1) Power, (1) LAN, (4) WLAN |
Signal strength LEDs | Software-adjustable to correspond to custom RSSI levels |
RoHS compliance | Yes |
Salt fog test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
Vibration test | IEC 68-2-6 |
Temperature shock test | IEC 68-2-14 |
UV test | IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
Wind-driven rain test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
Operating temperature | -40 to 70° C (-40 to 158° F) |
Operating humidity | 5 to 95% noncondensing |
Certifications | FCC, IC, CE |
System | |
Gain | 29 dBi |
Max. VSWR | 1.6:1 |
Channel sizes | PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz |
Polarization | Dual linear |
Operating Frequency (Mhz) | |
Worldwide | 5150 - 5875 MHz |
USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150 – 5250 MHz 5250 – 5350 MHz 5470 – 5725 MHz 5725 – 5850 MHz |
